- Country
- United States of America (USA)
- Manufacturer / Brand
- Heathkit (Brand), Heath Co.; Benton Harbor (MI)
- Year
- 1973 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 80685
-
- alternative name: Heath Company
Bild aus Heathkit Prospect 1973

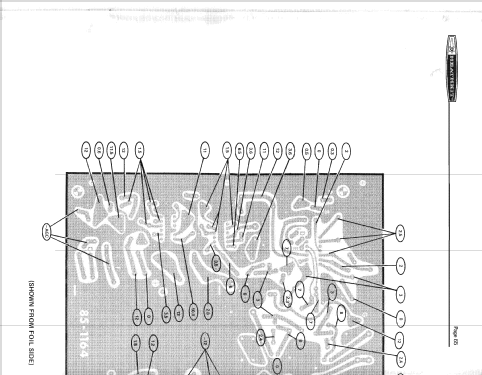

Click on the schematic thumbnail to request the schematic as a free document.
- Main principle
- Superheterodyne (common); ZF/IF 10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 120-240 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Wooden case
- from Radiomuseum.org
- Model: AJ-1214 - Heathkit Brand, Heath Co.;
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 324 x 98 x 330 mm / 12.8 x 3.9 x 13 inch
- Notes
- MW/UKW Stereo Tuner. Bausatz 395 DM, Fertiggerät 495 DM.
- Net weight (2.2 lb = 1 kg)
- 5.5 kg / 12 lb 1.8 oz (12.115 lb)
- Mentioned in
- -- Original prospect or advert (deutscher Heathkit Katalog 1973)
- Author
- Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
