• Country
• United States of America (USA)

• Manufacturer / Brand
• Heathkit (Brand), Heath Co.; Benton Harbor (MI)

• Year
• 1958 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 89630

• • alternative name: Heath Company

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• 12AT7 6AB4 6BS8 6AU6 6AU6 6AU6 6AU6 6AU6 6AL5 6BA6 6BE6 6AU6 6AU6 6AU6 12AU7 12AU7

• Main principle
• Superhet with RF-stage

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

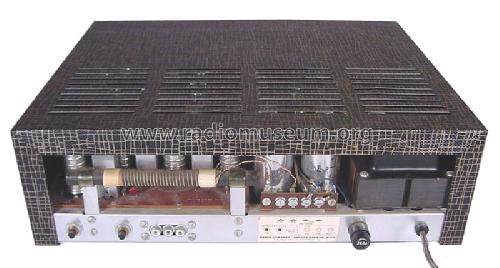

• Model: AM FM Stereo Tuner PT-1 - Heathkit Brand, Heath Co.;

• Shape
• Book-shelf unit.

• Notes

• Independent AM and FM sections for (now obsolete) "Simulcast" AM-FM-Stereo; an external Decoder like Heathkit AC-11 is required for FM-Mpx-Stereo.

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
