AM Portable Radio XR-2L

AM Portable Radio XR-2L; Heathkit Brand, (ID = 1921036) Radio

AM Portable Radio XR-2L; Heathkit Brand, (ID = 2520110) Radio

AM Portable Radio XR-2L; Heathkit Brand, (ID = 2520112) Radio
AM Portable Radio XR-2L; Heathkit Brand, (ID = 1396672) Radio AM Portable Radio XR-2L; Heathkit Brand, (ID = 1396666) Radio
AM Portable Radio XR-2L; Heathkit Brand, (ID = 1396671) Radio AM Portable Radio XR-2L; Heathkit Brand, (ID = 1396673) Radio
AM Portable Radio XR-2L; Heathkit Brand, (ID = 1396674) Radio AM Portable Radio XR-2L; Heathkit Brand, (ID = 1396675) Radio
AM Portable Radio XR-2L; Heathkit Brand, (ID = 1921190) Radio AM Portable Radio XR-2L; Heathkit Brand, (ID = 1927754) Radio
Use red slider bar for more.
AM Portable Radio XR-2L; Heathkit Brand, (ID = 1396672) Radio
Heathkit Brand,: AM Portable Radio XR-2L [Radio] ID = 1396672 933x877
Select picture or schematic to display from thumbnails on the right and click for download.
For model AM Portable Radio XR-2L, Heathkit (Brand), Heath Co.; Benton Harbor (MI):
Etsy Shop Plantdreaming ItemNumber 98578143

Country:  United States of America (USA)
Manufacturer / Brand:  Heathkit (Brand), Heath Co.; Benton Harbor (MI)
alternative name

Heath Company
Year: 1960 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: 2N1108 2N1110 2N1111 R251_TI R250_TI R250_TI
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / D: 6 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: AM Portable Radio XR-2L - Heathkit Brand, Heath Co.;
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 9.5 x 7.25 x 4 inch / 241 x 184 x 102 mm
Notes

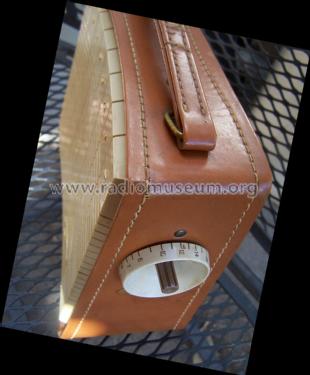

Heathkit AM Portable Radio Model XR-2L.
Six Transistor, two-diode circuit, big-set tonal quality with 4" x 6" speaker, built-in rod antenna, vernier action tuning.
Tuning range 540 - 1620 kc.
Case sim. Leather.
See also Heathkit AM Portable Radio Model XR-2P (Plastic Case).

Net weight (2.2 lb = 1 kg) 4.75 lb (4 lb 12 oz) / 2.157 kg
Source of data -- Original prospect or advert

Model page created by Franz Scharner. See "Data change" for further contributors.
