• Country
• United States of America (USA)

• Manufacturer / Brand
• Heathkit (Brand), Heath Co.; Benton Harbor (MI)

• Year
• 1958 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 179459

• • alternative name: Heath Company

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12AU7 12AX7 12BH7 6550 6550

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 70 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

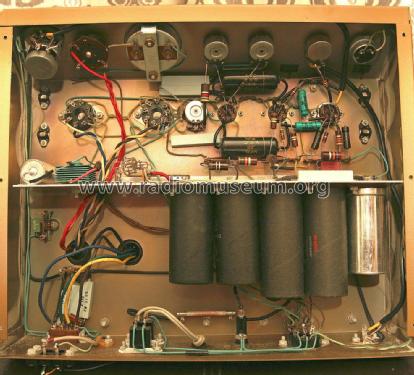

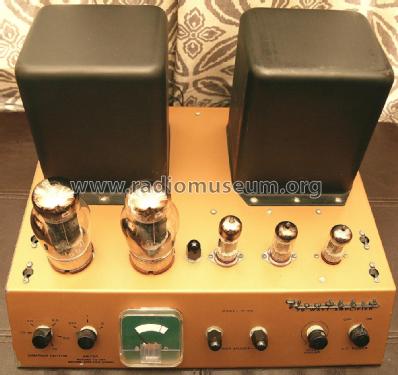

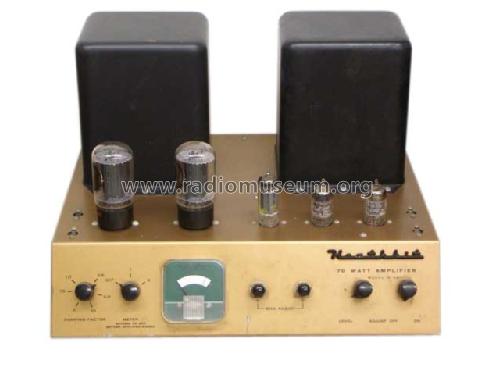

• Model: Amplifier W-6A - Heathkit Brand, Heath Co.;

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 11.87 x 9.1 x 14.25 inch / 301 x 231 x 362 mm

• Notes

• Power amplifier, mono, with Damping Factor control and Bias meter.

• Net weight (2.2 lb = 1 kg)
• 48 lb (48 lb 0 oz) / 21.792 kg

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
