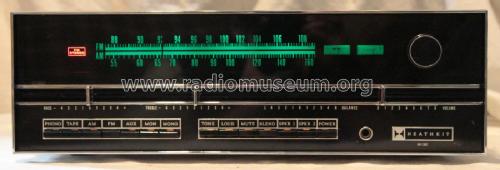

Heathkit Brand,: AR-1302 [Radio] ID = 2239245 1399x682
Select picture or schematic to display from thumbnails on the right and click for download.
For model AR-1302, Heathkit (Brand), Heath Co.; Benton Harbor (MI)

Country:  United States of America (USA)
Manufacturer / Brand:  Heathkit (Brand), Heath Co.; Benton Harbor (MI)
alternative name

Heath Company
Year: 1973 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 57:
Main principle Superheterodyne (common); ZF/IF 10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 105-250 Volt
Loudspeaker - This model requires external speaker(s).
Power out 40 W (unknown quality)
from Radiomuseum.org Model: AR-1302 - Heathkit Brand, Heath Co.;
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 425 x 130 x 368 mm / 16.7 x 5.1 x 14.5 inch
Notes

MW/UKW Stereo Empfänger 2 x 20 Watt. Bausatz 995 DM.

Music Power (Each channel): 8Ohms - 30W, 4Ohms - 20W, 16Ohms - 17W
Continuous Power: 8Ohms - 20W, 4Ohms - 16W, 16Ohms - 14W
Power bandswitch for 0.25% T.H.D.: 5Hz to 30kHz
Harmonic Distortion: 0.25% from 5Hz to 20kHz at 20RMS
Intermodulation Distortion: 0.25% at 20W, 60 and 6000Hz mixed 4:1
Channel Separation: Phono - 50dB, AUX and Tape - 55dB
Output Impedance (Each Channel): 4 to 16Ohms
FM Section (Monophonic): Tunning Range - 88 to 108MHz
Anntena: balanced for extrernal 300Ohms, unbalanced 75Ohms
Frequency Response: +-1dB 20 to 15000Hz

Net weight (2.2 lb = 1 kg) 12.7 kg / 27 lb 15.6 oz (27.974 lb)
Mentioned in -- Original prospect or advert (deutscher Heathkit Katalog 1973)

Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
