• Country
• United States of America (USA)

• Manufacturer / Brand
• Heathkit (Brand), Heath Co.; Benton Harbor (MI)

• Year
• 1964 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 116716

• • alternative name: Heath Company

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes
• 6AB4 6AN8 12BH7 6J6 6C4 12AU7 12AU7 12AU7 EZ81 1V2 5UP1

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

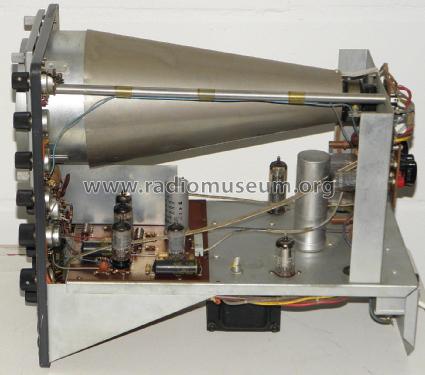

• Model: Breitband-Oszillograf IO-30/S - Heathkit Brand, Heath Co.;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 450 x 340 x 220 mm / 17.7 x 13.4 x 8.7 inch

• Notes
• 5" scope.

• Net weight (2.2 lb = 1 kg)
• 10 kg / 22 lb 0.4 oz (22.026 lb)

• Price in first year of sale
• 585.00 DM

• Source of data
• -- Original-techn. papers.

• Mentioned in
• Funk-Technik (FT) (10/1964, S. 377 / Werbeanzeige)

• Author
• Model page created by Peter Gruschka. See "Data change" for further contributors.
