Capacitor Checker IT-11 (ITW-11)
Heathkit (Brand), Heath Co.; Benton Harbor (MI)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Heathkit (Brand), Heath Co.; Benton Harbor (MI)
- Year
- 1963 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 76085
-
- alternative name: Heath Company
Radio Constructeur 1963
aus ebay, #380327882723, Verkäufer sx28
aus ebay, #380327882723, Verkäufer sx28
By Courtesy Of EBAY User: richards*auction
By Courtesy Of EBAY User: richards*auction
By Courtesy Of EBAY User: richards*auction
By Courtesy Of EBAY User: richards*auction
By Courtesy Of EBAY User: richards*auction
By Courtesy Of EBAY User: richards*auction
By Courtesy Of EBAY User: richards*auction
By Courtesy Of EBAY User: richards*auction
USA_HEATHKIT_IT-11
Heathkit IT-11 "deluxe capacitor checker"

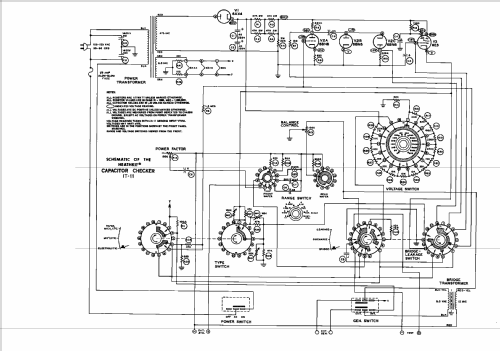

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Power type and voltage
- Alternating Current supply (AC) / 120 Volt
- Material
- Metal case
- from Radiomuseum.org
- Model: Capacitor Checker IT-11 - Heathkit Brand, Heath Co.;
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 168 x 245 x 127 mm / 6.6 x 9.6 x 5 inch
- Notes
- Also sold in kit form.
- Net weight (2.2 lb = 1 kg)
- 2.3 kg / 5 lb 1.1 oz (5.066 lb)
- Price in first year of sale
- 29.95 $
- Literature/Schematics (1)
- -- Original-techn. papers. (Radio Constructeur et Dépanneur mars 1963)
- Author
- Model page created by Georges Van Campenhout † 28.4.22. See "Data change" for further contributors.
