Citizen's Band Transceiver GW-11A

Citizen's Band Transceiver GW-11A; Heathkit Brand, (ID = 2497001) Citizen Citizen's Band Transceiver GW-11A; Heathkit Brand, (ID = 2497002) Citizen
Citizen's Band Transceiver GW-11A; Heathkit Brand, (ID = 2501564) Citizen Citizen's Band Transceiver GW-11A; Heathkit Brand, (ID = 2501565) Citizen
Citizen's Band Transceiver GW-11A; Heathkit Brand, (ID = 2501566) Citizen Citizen's Band Transceiver GW-11A; Heathkit Brand, (ID = 2501567) Citizen
Citizen's Band Transceiver GW-11A; Heathkit Brand, (ID = 816116) Citizen Citizen's Band Transceiver GW-11A; Heathkit Brand, (ID = 756890) Citizen
Use red slider bar for more.
Citizen's Band Transceiver GW-11A; Heathkit Brand, (ID = 2497001) Citizen

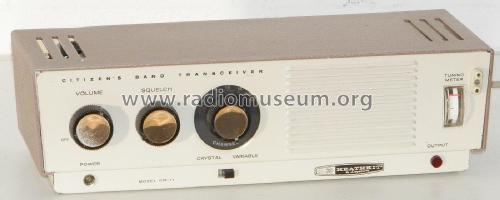

Heathkit Brand,: Citizen's Band Transceiver GW-11A [Citizen] ID = 2497001 1400x561
Select picture or schematic to display from thumbnails on the right and click for download.
For model Citizen's Band Transceiver GW-11A, Heathkit (Brand), Heath Co.; Benton Harbor (MI):
Mikrofon fehlt

Country:  United States of America (USA)
Manufacturer / Brand:  Heathkit (Brand), Heath Co.; Benton Harbor (MI)
alternative name

Heath Company
Year: 1963 ? Category: Citizen Band Equipment
Valves / Tubes 8: 6U8A 6C4 6BJ6 6BJ7 6AN8 6AQ5A 6AU8 5763
Main principle Transceiver; ZF/IF 455 kHz; 2 AF stage(s)
Wave bands Short Wave (SW only)
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
Power out
from Radiomuseum.org Model: Citizen's Band Transceiver GW-11A - Heathkit Brand, Heath Co.;
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 15 x 4.5 x 5.75 inch / 381 x 114 x 146 mm
Notes

Two-way radio for the 11 m CB band, versions for fixed stations.
Amplitude modulation, transmitter output power 4 W.
Tunable receiver (channels 1 to 23) or quartz-controlled (socket for plug-in quartz), transmitter quartz-controlled (3 quartz sockets).



Funksprechgerät für das 11 m-CB-Band, Versionen für Feststationen.
Amplitudenmodulation, Sender-Ausgangsleistung 4 W.
Empfänger durchstimmbar (Kanäle 1 bis 23) oder quarzgesteuert ( Fassung für Steckquarz), Sender quarzgesteuert (3 Quarzfassungen).



Net weight (2.2 lb = 1 kg) 4.3 kg / 9 lb 7.5 oz (9.471 lb)
Source of data Photofact CB Radio Manual, SAMS

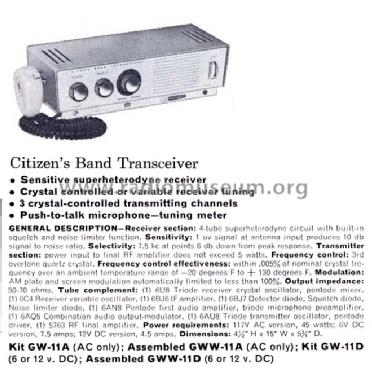

Literature/Schematics (1) -- Original prospect or advert

Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
