• Country
• United States of America (USA)

• Manufacturer / Brand
• Heathkit (Brand), Heath Co.; Benton Harbor (MI)

• Year
• 1951 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 88800

• • alternative name: Heath Company

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• Dry Batteries / 1 x 1,5 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Bakelite case

• from Radiomuseum.org

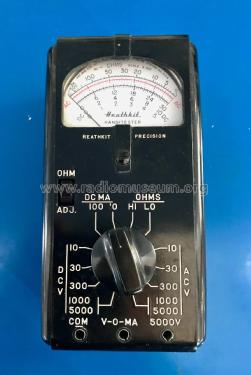

• Model: Handitester M-1 - Heathkit Brand, Heath Co.;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 3 x 6 x 2.625 inch / 76 x 152 x 67 mm

• Notes
• 0–10–30–300–1000–5000 Volt,
  0–10, 0–100 mA,
  0–3000, 0–300000 Ohm.

• Price in first year of sale
• 13.50 US

• Mentioned in
• Radio Electronics (U.S. Magazine) (January 1951 Page 91)

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
