HP-23E

HP-23E; Heathkit Brand, (ID = 74019) Power-S

HP-23E; Heathkit Brand, (ID = 73931) Power-S

HP-23E; Heathkit Brand, (ID = 73932) Power-S

HP-23E; Heathkit Brand, (ID = 554980) Power-S
HP-23E; Heathkit Brand, (ID = 52138) Power-S HP-23E; Heathkit Brand, (ID = 52139) Power-S
HP-23E; Heathkit Brand, (ID = 1473286) Power-S
Use red slider bar for more.
HP-23E; Heathkit Brand, (ID = 52138) Power-S

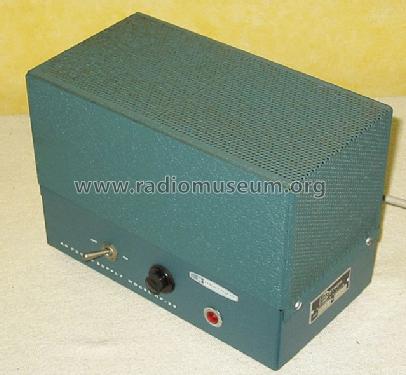

Heathkit Brand,: HP-23E [Power-S] ID = 52138 640x590
Select picture or schematic to display from thumbnails on the right and click for download.
For model HP-23E, Heathkit (Brand), Heath Co.; Benton Harbor (MI)

Country:  United States of America (USA)
Manufacturer / Brand:  Heathkit (Brand), Heath Co.; Benton Harbor (MI)
alternative name

Heath Company
Year: 1963–1968 Category: Power supply/conditioner or battery or charger
Wave bands - without
Details Power Supply (not only Batt.El.)
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: HP-23E - Heathkit Brand, Heath Co.;
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 9 x 6.75 x 4.75 inch / 229 x 171 x 121 mm
Notes AC power supply for fixed-station use of HW/SB series Transceiver/Transmitters. 800 VDC, 250/300 VDC, -130 VDC, 6.3/12.6 VAC output. Several variants. Often built in speaker cabinet SB-600. Mainly sold in kit-form.
Net weight (2.2 lb = 1 kg) 7.4 kg / 16 lb 4.8 oz (16.3 lb)
Price in first year of sale 40.00 $
External source of data Eilert Menke
Mentioned in Heathkit: A Guide to Amateur Radio Products

Model page created by a member from D. See "Data change" for further contributors.
