Impedance Bridge IB-2
Heathkit (Brand), Heath Co.; Benton Harbor (MI)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Heathkit (Brand), Heath Co.; Benton Harbor (MI)
- Year
- 1954 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 334462
-
- alternative name: Heath Company
- Number of Tubes
- 4
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Impedance Bridge IB-2 - Heathkit Brand, Heath Co.;
- Shape
- Tablemodel, slant panel.
- Dimensions (WHD)
- 17 x 8 x 6 inch / 432 x 203 x 152 mm
- Notes
-
The IB-2 bridge includes 4 instruments:
Wheatstone bridge for resistance measurements.
Comparison bridge for capacity measurements.
Maxwell bridge for low Q.
Hay's bridge for high Q inductor measurements.In Italy it was offered both as a kit at ITL 83,000 and assembled at ITL 94,000.
- Net weight (2.2 lb = 1 kg)
- 6.5 kg / 14 lb 5.1 oz (14.317 lb)
- Mentioned in

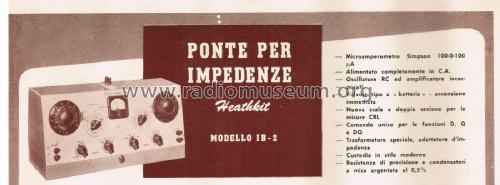

- -- Original prospect or advert (Original catalog by Larir, agent for Italy, 1954.)
- Author
- Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
