Laboratory Oscilloscope O-11 (0-11)

Laboratory Oscilloscope O-11 ; Heathkit Brand, (ID = 655468) Equipment
Laboratory Oscilloscope O-11 ; Heathkit Brand, (ID = 655340) Equipment Laboratory Oscilloscope O-11 ; Heathkit Brand, (ID = 655336) Equipment
Laboratory Oscilloscope O-11 ; Heathkit Brand, (ID = 568525) Equipment Laboratory Oscilloscope O-11 ; Heathkit Brand, (ID = 655334) Equipment
Laboratory Oscilloscope O-11 ; Heathkit Brand, (ID = 655335) Equipment Laboratory Oscilloscope O-11 ; Heathkit Brand, (ID = 655337) Equipment

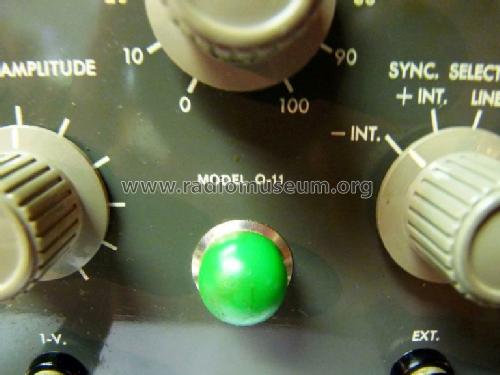

Laboratory Oscilloscope O-11 ; Heathkit Brand, (ID = 655338) Equipment Laboratory Oscilloscope O-11 ; Heathkit Brand, (ID = 655339) Equipment
Laboratory Oscilloscope O-11 ; Heathkit Brand, (ID = 655341) Equipment
Use red slider bar for more.
Laboratory Oscilloscope O-11 ; Heathkit Brand, (ID = 655340) Equipment
Heathkit Brand,: Laboratory Oscilloscope O-11 [Equipment] ID = 655340 508x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Laboratory Oscilloscope O-11 (0-11), Heathkit (Brand), Heath Co.; Benton Harbor (MI)

Country:  United States of America (USA)
Manufacturer / Brand:  Heathkit (Brand), Heath Co.; Benton Harbor (MI)
alternative name

Heath Company
Year: 1957/1958 Category: Service- or Lab Equipment
Valves / Tubes 11: 6AB4 6AN8 12BH7 6DT6 12AU7 12AU7 12AU7 6X4 1V2 6C4 5UP1
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Laboratory Oscilloscope O-11 - Heathkit Brand, Heath Co.;
Material Metal case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 8.63 x 14.13 x 16 inch / 219 x 359 x 406 mm
Notes

Heathkit O-11 (0-11), Laboratory Oscilloscope;
5" round CRT, full 5 MHz bandwidth for color TV servicing, Heath patented sweep circuit provides 20 to 500 kHz sweep.
80 W power consumption.

Als Bausatz erhältlich für 599 DM (Werbung 1957)

Price in first year of sale 699.00 DM
Source of data -- Original-techn. papers.
Mentioned in Funk-Technik (FT) (23/1957, S. 806 Werbung, (neu eingetroffen))

Model page created by a member from A. See "Data change" for further contributors.
