Mohican GC-1A

Mohican GC-1A; Heathkit Brand, (ID = 161667) Amateur-R

Mohican GC-1A; Heathkit Brand, (ID = 161668) Amateur-R

Mohican GC-1A; Heathkit Brand, (ID = 224227) Amateur-R
Mohican GC-1A; Heathkit Brand, (ID = 766970) Amateur-R Mohican GC-1A; Heathkit Brand, (ID = 766971) Amateur-R
Mohican GC-1A; Heathkit Brand, (ID = 766972) Amateur-R Mohican GC-1A; Heathkit Brand, (ID = 766973) Amateur-R
Mohican GC-1A; Heathkit Brand, (ID = 766974) Amateur-R Mohican GC-1A; Heathkit Brand, (ID = 224228) Amateur-R
Mohican GC-1A; Heathkit Brand, (ID = 605518) Amateur-R Mohican GC-1A; Heathkit Brand, (ID = 767599) Amateur-R
Mohican GC-1A; Heathkit Brand, (ID = 767600) Amateur-R Mohican GC-1A; Heathkit Brand, (ID = 767601) Amateur-R
Use red slider bar for more.
Mohican GC-1A; Heathkit Brand, (ID = 766970) Amateur-R

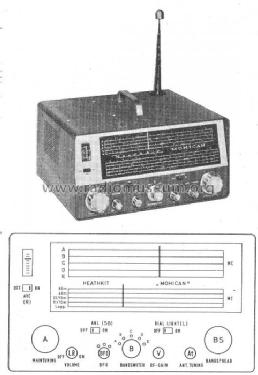

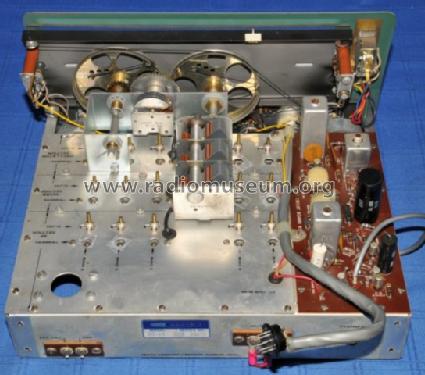

Heathkit Brand,: Mohican GC-1A [Amateur-R] ID = 766970 933x682
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mohican GC-1A, Heathkit (Brand), Heath Co.; Benton Harbor (MI):
Ebay 320531254945

Country:  United States of America (USA)
Manufacturer / Brand:  Heathkit (Brand), Heath Co.; Benton Harbor (MI)
alternative name

Heath Company
Year: 1962–1968 Category: Amateur-Receiver (amateur bands, may include broadcast bands)
Semiconductors (the count is only for transistors) 10:
Main principle Superhet with RF-stage; ZF/IF 455 kHz
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Dry Batteries / 8 x 1,5 (C size) Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Mohican GC-1A - Heathkit Brand, Heath Co.;
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 12 x 6.875 x 10 inch / 305 x 175 x 254 mm
Notes

Heathkit Receiver GC-1A.
Coverage 550 kHz to 32 MHz in five ranges, bandspread scales for 80 to 10 meters HAM bands and 11 meter CB. AM/CW/SSB. Built in 50-inch telescopic whip antenna.

When operated from batteries, the 8 C-cells are mounted in a carrier module that is inserted through the rear panel of the set. This carrier module could be replaced by a power unit (Kit XP-2) for 117v AC operation.

Transistor complement:
2N1396 RF Amplifier
2N1225 Mixer
2N1225 Oscillator
2N373 1st IF Amplifier
2N373 2nd IF Amplifier
2N373 3rd IF Amplifier
2N407 Audio Driver
2N407 Audio Output (2)
2N409 BFO

Net weight (2.2 lb = 1 kg) 9 kg / 19 lb 13.2 oz (19.824 lb)
Price in first year of sale 90.00 $
Mentioned in Heathkit: A Guide to Amateur Radio Products
Literature/Schematics (1) -- Schematic

Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
