Multimeter IM-104

Multimeter IM-104; Heathkit Brand, (ID = 126621) Equipment
Multimeter IM-104; Heathkit Brand, (ID = 2167935) Equipment Multimeter IM-104; Heathkit Brand, (ID = 2167946) Equipment
Multimeter IM-104; Heathkit Brand, (ID = 2167944) Equipment Multimeter IM-104; Heathkit Brand, (ID = 126617) Equipment
Use red slider bar for more.

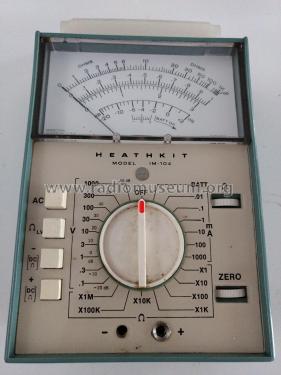

Multimeter IM-104; Heathkit Brand, (ID = 2167935) Equipment
Heathkit Brand,: Multimeter IM-104 [Equipment] ID = 2167935 1400x1867
Select picture or schematic to display from thumbnails on the right and click for download.
For model Multimeter IM-104, Heathkit (Brand), Heath Co.; Benton Harbor (MI):
Heathkit Model IM-104

Country:  United States of America (USA)
Manufacturer / Brand:  Heathkit (Brand), Heath Co.; Benton Harbor (MI)
alternative name

Heath Company
Year: 1973 ? Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Details
Power type and voltage Dry Batteries
Loudspeaker
Power out
from Radiomuseum.org Model: Multimeter IM-104 - Heathkit Brand, Heath Co.;
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 126 x 179 x 55 mm / 5 x 7 x 2.2 inch
Notes Preise in Österreich: Bausatz ATS 3570.- Betriebsfertig ATS 4960.-
Net weight (2.2 lb = 1 kg) 1.1 kg / 2 lb 6.8 oz (2.423 lb)
Mentioned in -- Original prospect or advert ((deutscher Heathkit Katalog 1973))
Literature/Schematics (1) -- Schematic

Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
