Oscilloscope IO-21E

Oscilloscope IO-21E; Heathkit Brand, (ID = 2366245) Equipment
Oscilloscope IO-21E; Heathkit Brand, (ID = 836494) Equipment Oscilloscope IO-21E; Heathkit Brand, (ID = 836496) Equipment

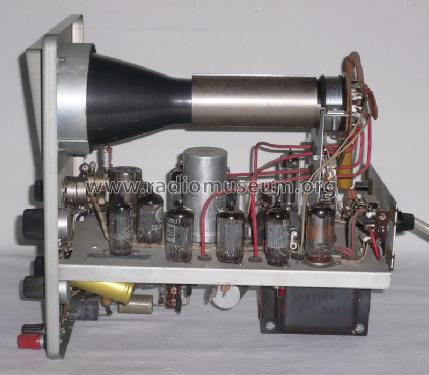

Oscilloscope IO-21E; Heathkit Brand, (ID = 836499) Equipment Oscilloscope IO-21E; Heathkit Brand, (ID = 836501) Equipment
Oscilloscope IO-21E; Heathkit Brand, (ID = 836502) Equipment
Use red slider bar for more.
Oscilloscope IO-21E; Heathkit Brand, (ID = 836494) Equipment
Heathkit Brand,: Oscilloscope IO-21E [Equipment] ID = 836494 616x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Oscilloscope IO-21E, Heathkit (Brand), Heath Co.; Benton Harbor (MI)

Country:  United States of America (USA)
Manufacturer / Brand:  Heathkit (Brand), Heath Co.; Benton Harbor (MI)
alternative name

Heath Company
Year: 1962 ? Category: Service- or Lab Equipment
Valves / Tubes 9: 6AB4 6AB4 6EJ7 or EF184 12AU7 12AU7 12AU7 12AU7 1V2 3RP1 108C1 108C1
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Oscilloscope IO-21E - Heathkit Brand, Heath Co.;
Material Metal case
Dimensions (WHD) 165 x 250 x 280 mm / 6.5 x 9.8 x 11 inch
Notes

Deutliche Abweichungen vom bereits angelegten Modell Heathkit IO-21:
Röhrenanzahl und damit wohl grösserer Schaltungsumfang.
Zwei Stabis (108C1) statt nur einem.
Anodenspannungsgleichrichtung mit Diodenbrücke statt mit Röhre.

Verstärker: X = Y (2 dB von 2 Hz ... 200 KHz), Empfindlichkeit 0,25 Veff.

Net weight (2.2 lb = 1 kg) 4.5 kg / 9 lb 14.6 oz (9.912 lb)
Source of data - - Data from my own collection
Mentioned in Funk-Technik (FT) (9/1962, S. 324 / Werbeanzeige)

Model page created by Peter Gruschka. See "Data change" for further contributors.
