Public Address Amplifier Kit AA-80

Heathkit (Brand), Heath Co.; Benton Harbor (MI)

Data
Forum
Pictures
Collections

  • Year
  • 1961
  • Category
  • Kit (Parts plus instruction) or building instructions only
  • Radiomuseum.org ID
  • 365243
    • alternative name: Heath Company

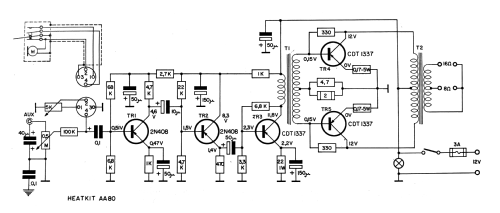

Click on the schematic thumbnail to request the schematic as a free document.

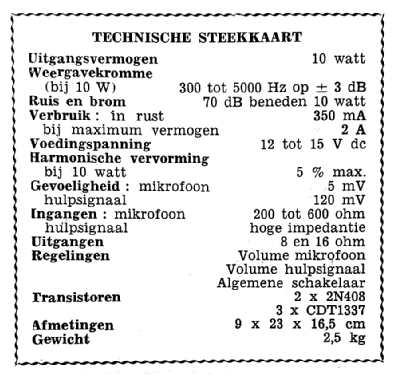

 Technical Specifications

  • Number of Transistors
  • 5
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Storage and/or dry batteries / 12 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 10 W (undistorted)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Public Address Amplifier Kit AA-80 - Heathkit Brand, Heath Co.;
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 230 x 90 x 165 mm / 9.1 x 3.5 x 6.5 inch
  • Net weight (2.2 lb = 1 kg)
  • 2.5 kg / 5 lb 8.1 oz (5.507 lb)
  • Price in first year of sale
  • 39.95 USD
  • Mentioned in
  • -- Schematic
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Heathkit Catalog, Fall & Winter 1961-62, page 17.)
  • Author
  • Model page created by Hugo Sneyers. See "Data change" for further contributors.
