General Coverage Receiver GR-91

General Coverage Receiver GR-91; Heathkit Brand, (ID = 161379) Radio

General Coverage Receiver GR-91; Heathkit Brand, (ID = 161380) Radio

General Coverage Receiver GR-91; Heathkit Brand, (ID = 2366226) Radio
General Coverage Receiver GR-91; Heathkit Brand, (ID = 1558863) Radio General Coverage Receiver GR-91; Heathkit Brand, (ID = 161361) Radio
General Coverage Receiver GR-91; Heathkit Brand, (ID = 161364) Radio General Coverage Receiver GR-91; Heathkit Brand, (ID = 161365) Radio
General Coverage Receiver GR-91; Heathkit Brand, (ID = 161362) Radio General Coverage Receiver GR-91; Heathkit Brand, (ID = 161363) Radio

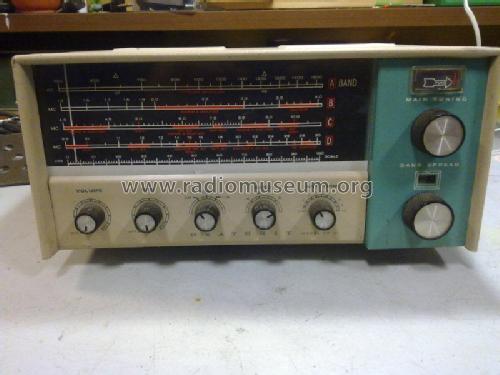

General Coverage Receiver GR-91; Heathkit Brand, (ID = 1190303) Radio General Coverage Receiver GR-91; Heathkit Brand, (ID = 1558864) Radio
General Coverage Receiver GR-91; Heathkit Brand, (ID = 1558865) Radio General Coverage Receiver GR-91; Heathkit Brand, (ID = 1558866) Radio
Use red slider bar for more.
General Coverage Receiver GR-91; Heathkit Brand, (ID = 1558863) Radio
Heathkit Brand,: General Coverage Receiver GR-91 [Radio] ID = 1558863 933x510
Select picture or schematic to display from thumbnails on the right and click for download.
For model General Coverage Receiver GR-91, Heathkit (Brand), Heath Co.; Benton Harbor (MI):
aus ebay, #380732817601, Verkäufer sx28

Country:  United States of America (USA)
Manufacturer / Brand:  Heathkit (Brand), Heath Co.; Benton Harbor (MI)
alternative name

Heath Company
Year: 1961–1964 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 12BE6 12BA6 12AV6 50C5
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: General Coverage Receiver GR-91 - Heathkit Brand, Heath Co.;
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 12.12 x 5.25 x 8.125 inch / 308 x 133 x 206 mm
Notes

AM oder CW; Frequenzbereich: 550 kHz...30 MHz in 4 Bändern. Bandspreizung, Antennentrimmer. Bausatzpreis in Österreich im Jahre 1963 ATS 1900.-

Net weight (2.2 lb = 1 kg) 0.5 kg / 1 lb 1.6 oz (1.101 lb)
Price in first year of sale 40.00 $
Source of data Heathkit: A Guide to Amateur Radio Products
Literature/Schematics (1) -- Schematic

Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
