Variable Voltage Regulated Power Supply PS-3 American tubes

• Country
• United States of America (USA)

• Manufacturer / Brand
• Heathkit (Brand), Heath Co.; Benton Harbor (MI)

• Year
• 1957 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 89120

• • alternative name: Heath Company

• Picture
• Schematics

Previous Next

Previous Next

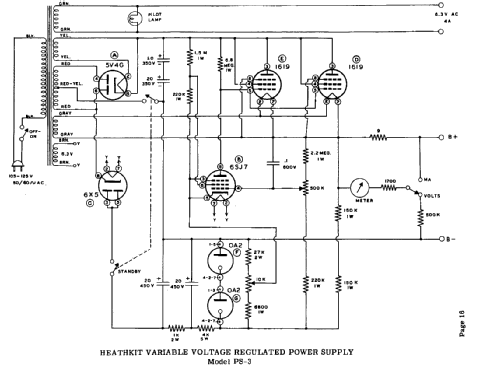

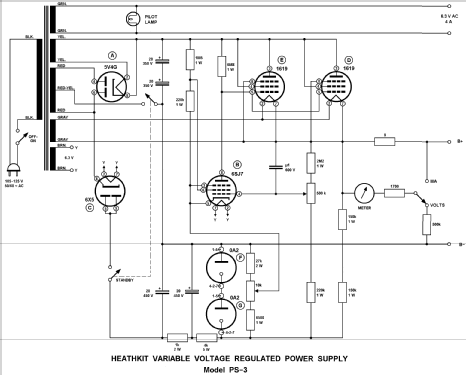

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 1619 1619 6SJ7 6X5 5V4G 0A2 0A2

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Variable Voltage Regulated Power Supply PS-3 [American tubes] - Heathkit Brand, Heath Co.;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 13 x 8.5 x 7 inch / 330 x 216 x 178 mm

• Notes

• Heathkit Regulated Power Supply PS-3.
  0-500 VDC/10 mA (at 450 V) to 130 mA (at 200 V), 6.3 VAC/4 A.

  See also version Variable Voltage Regulated Power Supply PS-3 with european tubes and 220V power supply.

• Net weight (2.2 lb = 1 kg)
• 7.718 kg / 17 lb 0 oz (17 lb)

• Source of data
• -- Original-techn. papers.
