HF Linear Amplifier SB-200

HF Linear Amplifier SB-200; Heathkit Brand, (ID = 96700) Amateur-D

HF Linear Amplifier SB-200; Heathkit Brand, (ID = 2517277) Amateur-D

HF Linear Amplifier SB-200; Heathkit Brand, (ID = 2518063) Amateur-D

HF Linear Amplifier SB-200; Heathkit Brand, (ID = 2518064) Amateur-D
HF Linear Amplifier SB-200; Heathkit Brand, (ID = 2460281) Amateur-D HF Linear Amplifier SB-200; Heathkit Brand, (ID = 767822) Amateur-D
HF Linear Amplifier SB-200; Heathkit Brand, (ID = 767821) Amateur-D HF Linear Amplifier SB-200; Heathkit Brand, (ID = 152947) Amateur-D
HF Linear Amplifier SB-200; Heathkit Brand, (ID = 73507) Amateur-D HF Linear Amplifier SB-200; Heathkit Brand, (ID = 767823) Amateur-D
HF Linear Amplifier SB-200; Heathkit Brand, (ID = 152950) Amateur-D HF Linear Amplifier SB-200; Heathkit Brand, (ID = 767824) Amateur-D
HF Linear Amplifier SB-200; Heathkit Brand, (ID = 1052153) Amateur-D HF Linear Amplifier SB-200; Heathkit Brand, (ID = 1052154) Amateur-D
Use red slider bar for more.
HF Linear Amplifier SB-200; Heathkit Brand, (ID = 2460281) Amateur-D

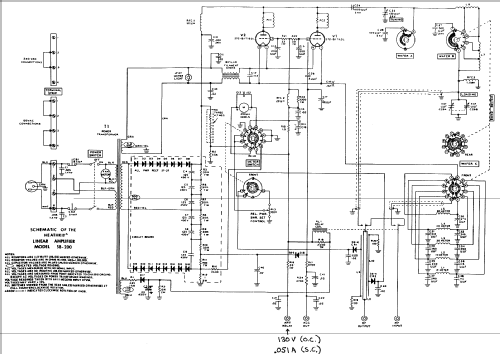

Heathkit Brand,: HF Linear Amplifier SB-200 [Amateur-D] ID = 2460281 1400x661
Select picture or schematic to display from thumbnails on the right and click for download.
For model HF Linear Amplifier SB-200, Heathkit (Brand), Heath Co.; Benton Harbor (MI)

Country:  United States of America (USA)
Manufacturer / Brand:  Heathkit (Brand), Heath Co.; Benton Harbor (MI)
alternative name

Heath Company
Year: 1964–1978 Category: Amateur Equipment (Other, but not Key)
Valves / Tubes 2: 572B 572B
Main principle Radio Frequency Amplification only
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 115; 230 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: HF Linear Amplifier SB-200 - Heathkit Brand, Heath Co.;
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 15 x 6.75 x 14 inch / 381 x 171 x 356 mm
Notes Heathkit HF-Amplifier SB-200.
Grounded grid linear power-amplifier for 80 to 10 meters HAM bands. Driver power max. 100 watts, output power abt. 600 watts HF.
Net weight (2.2 lb = 1 kg) 18.5 kg / 40 lb 12 oz (40.749 lb)
Price in first year of sale 200.00 $
Source of data -- Original prospect or advert
Mentioned in Heathkit: A Guide to Amateur Radio Products

Model page created by a member from D. See "Data change" for further contributors.
