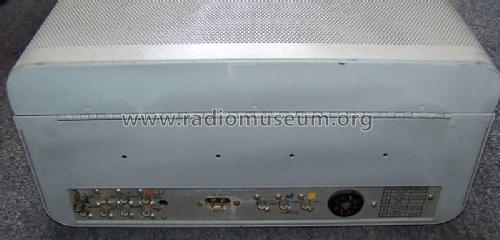

SB-300; Heathkit Brand, (ID = 765700) Amateur-R SB-300; Heathkit Brand, (ID = 765701) Amateur-R
Use red slider bar for more.
SB-300; Heathkit Brand, (ID = 182938) Amateur-R
Heathkit Brand,: SB-300 [Amateur-R] ID = 182938 800x497
Select picture or schematic to display from thumbnails on the right and click for download.
For model SB-300, Heathkit (Brand), Heath Co.; Benton Harbor (MI):
Ebay Nr. 5864807717

Country:  United States of America (USA)
Manufacturer / Brand:  Heathkit (Brand), Heath Co.; Benton Harbor (MI)
alternative name

Heath Company
Year: 1963–1966 ? Category: Amateur-Receiver (amateur bands, may include broadcast bands)
Valves / Tubes 10: 6BZ6 6AU6 6AU6 6AB4 6AU6 6BA6 6BA6 6AU6 6HF8 6AS11
Main principle Superhet, double/triple conversion; ZF/IF 8400/3395 kHz
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 120 Volt
Loudspeaker - For headphones or amp.
Power out 1 W (unknown quality)
from Radiomuseum.org Model: SB-300 - Heathkit Brand, Heath Co.;
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 14.87 x 6.625 x 13.37 inch / 378 x 168 x 340 mm
Notes Heathkit Shortwave-Receiver SB-300.
Covering 80-10 m HAM bands in SSB and CW, optional AM.
Matching transmitter .
European model SB-300E with 220 V supply.
Net weight (2.2 lb = 1 kg) 10.5 kg / 23 lb 2 oz (23.128 lb)
Price in first year of sale 260.00 $
Collectors' prices
Literature/Schematics (1) -- Schematic

Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
