SB-310

SB-310; Heathkit Brand, (ID = 220238) Amateur-R

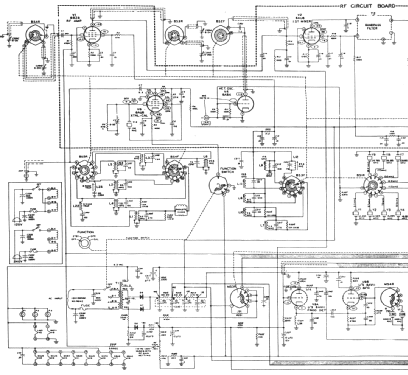

SB-310; Heathkit Brand, (ID = 220239) Amateur-R
SB-310; Heathkit Brand, (ID = 2203030) Amateur-R SB-310; Heathkit Brand, (ID = 2203031) Amateur-R
SB-310; Heathkit Brand, (ID = 2203032) Amateur-R SB-310; Heathkit Brand, (ID = 2203033) Amateur-R
SB-310; Heathkit Brand, (ID = 694079) Amateur-R SB-310; Heathkit Brand, (ID = 694080) Amateur-R
SB-310; Heathkit Brand, (ID = 694081) Amateur-R SB-310; Heathkit Brand, (ID = 694082) Amateur-R
SB-310; Heathkit Brand, (ID = 981163) Amateur-R SB-310; Heathkit Brand, (ID = 981164) Amateur-R
Use red slider bar for more.
SB-310; Heathkit Brand, (ID = 2203030) Amateur-R
Heathkit Brand,: SB-310 [Amateur-R] ID = 2203030 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model SB-310, Heathkit (Brand), Heath Co.; Benton Harbor (MI)

Country:  United States of America (USA)
Manufacturer / Brand:  Heathkit (Brand), Heath Co.; Benton Harbor (MI)
alternative name

Heath Company
Year: 1967–1972 Category: Amateur-Receiver (amateur bands, may include broadcast bands)
Valves / Tubes 10: 6BZ6 6AU6 6AU6 6AB4 6CB6 6BA6 6BA6 6AU6 6HF8 6AV11
Main principle Superheterodyne (common); ZF/IF 3395 kHz
Wave bands Short Wave (SW only)
Details
Power type and voltage Alternating Current supply (AC) / 105-250 Volt
Loudspeaker - For headphones or amp.
Power out 1 W (unknown quality)
from Radiomuseum.org Model: SB-310 - Heathkit Brand, Heath Co.;
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 15 x 6.75 x 14 inch / 381 x 171 x 356 mm
Notes Heathkit Broadcast and HAM bands receiver for AM/CW/SSB SB-310.
Covers 3.5-4.0, 5.7-6.2, 7.0-7.5, 9.5-10.0, 11.5-12.0, 14.0-14.5, 15.0-15.5, 17.5-18.0, 26.9-27.4 MHz.
Net weight (2.2 lb = 1 kg) 8.5 kg / 18 lb 11.6 oz (18.722 lb)
Price in first year of sale 268.00 $
Source of data -- Original prospect or advert
Mentioned in Heathkit: A Guide to Amateur Radio Products

Model page created by Michael Schlör. See "Data change" for further contributors.
