• Country
• United States of America (USA)

• Manufacturer / Brand
• Heathkit (Brand), Heath Co.; Benton Harbor (MI)

• Year
• 1950 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 156501

• • alternative name: Heath Company

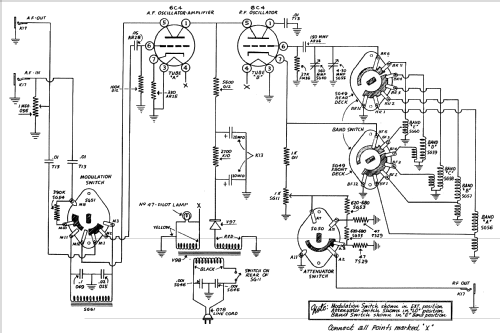

Click on the schematic thumbnail to request the schematic as a free document.

• Power type and voltage
• Alternating Current supply (AC)

• Material
• Metal case

• from Radiomuseum.org
• Model: Signal Generator SG-6 - Heathkit Brand, Heath Co.;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 9 x 6 x 5 inch / 229 x 152 x 127 mm

• Notes
• 5 frequency bands being marked as: 160-500 kHz; 500-1500 kHz; 1700-5500 kHz; 5.5-18 MHz; 20-50 MHz.
