• Country
• United States of America (USA)

• Manufacturer / Brand
• Heathkit (Brand), Heath Co.; Benton Harbor (MI)

• Year
• 1966

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 112198

• • alternative name: Heath Company

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6CB6 6CL6 6CL6 6AW8A 12AT7

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

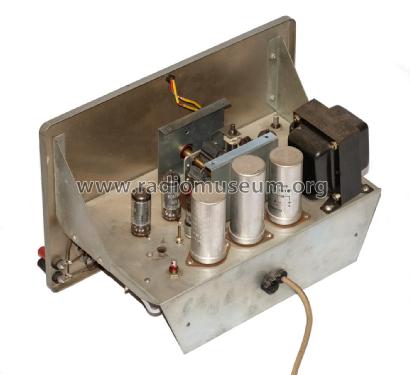

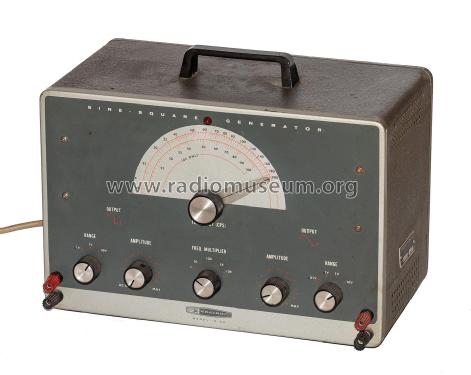

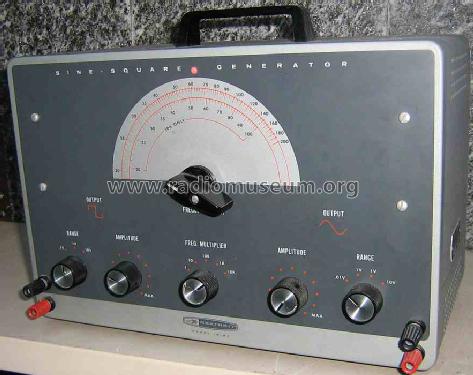

• Model: Sinus-Rechteckgenerator IG-82E - Heathkit Brand, Heath Co.;

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 328 x 215 x 185 mm / 12.9 x 8.5 x 7.3 inch

• Notes
• Export version for Europe; RC-Generator, 20 Hz to 1 MHz in 5 ranges, sine or square signal out, AF out max. 10 V_eff. Auch als Bausatz 369 DM.-

• Net weight (2.2 lb = 1 kg)
• 5 kg / 11 lb 0.2 oz (11.013 lb)

• Price in first year of sale
• 595.00 DM

• Mentioned in
• Funkschau (1966 Heft 5, Seite 297)
