Station Console SB-630

Station Console SB-630; Heathkit Brand, (ID = 167404) Amateur-D

Station Console SB-630; Heathkit Brand, (ID = 167405) Amateur-D
Station Console SB-630; Heathkit Brand, (ID = 766986) Amateur-D Station Console SB-630; Heathkit Brand, (ID = 766987) Amateur-D
Station Console SB-630; Heathkit Brand, (ID = 766983) Amateur-D Station Console SB-630; Heathkit Brand, (ID = 766978) Amateur-D
Station Console SB-630; Heathkit Brand, (ID = 766981) Amateur-D Station Console SB-630; Heathkit Brand, (ID = 766984) Amateur-D
Use red slider bar for more.

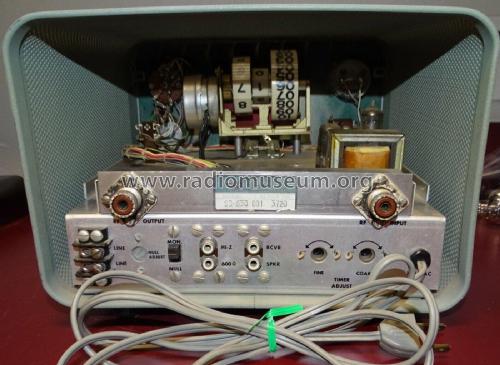

Station Console SB-630; Heathkit Brand, (ID = 766986) Amateur-D
Heathkit Brand,: Station Console SB-630 [Amateur-D] ID = 766986 933x715
Select picture or schematic to display from thumbnails on the right and click for download.
For model Station Console SB-630, Heathkit (Brand), Heath Co.; Benton Harbor (MI):
Ebay 320531258712

Country:  United States of America (USA)
Manufacturer / Brand:  Heathkit (Brand), Heath Co.; Benton Harbor (MI)
alternative name

Heath Company
Year: 1966–1974 Category: Amateur Equipment (Other, but not Key)
Valves / Tubes 1: 6EW6 0A2
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 120 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Station Console SB-630 - Heathkit Brand, Heath Co.;
Material Metal case
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Dimensions (WHD) 10 x 6.75 x 11 inch / 254 x 171 x 279 mm
Notes Heathkit Station Console SB-630with phone patch, SWR-Meter and clock.
Net weight (2.2 lb = 1 kg) 4.5 kg / 9 lb 14.6 oz (9.912 lb)
Price in first year of sale 100.00 $
Literature/Schematics (1) -- Schematic

Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
