• Country
• United States of America (USA)

• Manufacturer / Brand
• Heathkit (Brand), Heath Co.; Benton Harbor (MI)

• Year
• 1968

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 97411

• • alternative name: Heath Company

Click on the schematic thumbnail to request the schematic as a free document.

Audio (to hear)

• Number of Transistors
• Semiconductors present.

• Semiconductors
• CA3012 CA3012

• Main principle
• Superheterodyne (common); ZF/IF 10700 kHz

• Wave bands
• FM Broadcast Band Only

• Power type and voltage
• Alternating Current supply (AC) / 105-125/210-250 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

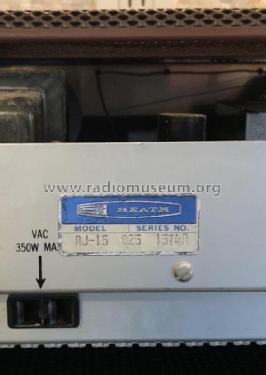

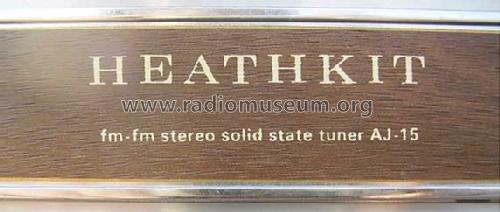

• Model: Stereo Tuner AJ-15 - Heathkit Brand, Heath Co.;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 426 x 117 x 328 mm / 16.8 x 4.6 x 12.9 inch

• Notes
• UKW Tuner mit FETs, ZF-Verstärker mit 2 ICs. Passendes Nußbaumgehäuse AE-18: 90,- DM.

• Net weight (2.2 lb = 1 kg)
• 5.5 kg / 12 lb 1.8 oz (12.115 lb)

• Price in first year of sale
• 1,095.00 DM

• Mentioned in
• Heathkit-Katalog, Winter 1968/69

• Author
• Model page created by Trev Levick. See "Data change" for further contributors.
