SW-717

SW-717; Heathkit Brand, (ID = 114068) Amateur-R

SW-717; Heathkit Brand, (ID = 114069) Amateur-R

SW-717; Heathkit Brand, (ID = 765196) Amateur-R
SW-717; Heathkit Brand, (ID = 2202838) Amateur-R SW-717; Heathkit Brand, (ID = 2202839) Amateur-R
SW-717; Heathkit Brand, (ID = 566634) Amateur-R SW-717; Heathkit Brand, (ID = 566635) Amateur-R
SW-717; Heathkit Brand, (ID = 566637) Amateur-R SW-717; Heathkit Brand, (ID = 113784) Amateur-R
SW-717; Heathkit Brand, (ID = 566636) Amateur-R SW-717; Heathkit Brand, (ID = 813874) Amateur-R
SW-717; Heathkit Brand, (ID = 1068413) Amateur-R SW-717; Heathkit Brand, (ID = 1159639) Amateur-R
Use red slider bar for more.
SW-717; Heathkit Brand, (ID = 2202838) Amateur-R

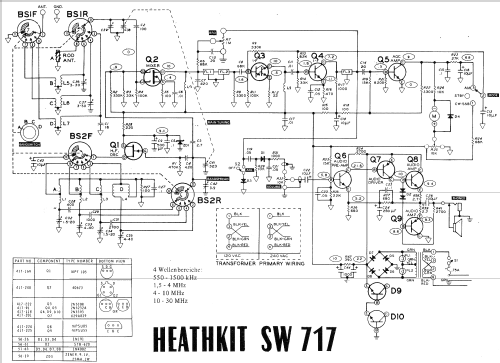

Heathkit Brand,: SW-717 [Amateur-R] ID = 2202838 1345x595
Select picture or schematic to display from thumbnails on the right and click for download.
For model SW-717, Heathkit (Brand), Heath Co.; Benton Harbor (MI)

Country:  United States of America (USA)
Manufacturer / Brand:  Heathkit (Brand), Heath Co.; Benton Harbor (MI)
alternative name

Heath Company
Year: 1971–1982 Category: Amateur-Receiver (amateur bands, may include broadcast bands)
Semiconductors (the count is only for transistors) 9: 1N191 1N191 1N191 2N5308 1N4002 1N4002 1N4002 1N4002 MPF105 40673 2N5232 2N5232 2N3393 2N3393 2N3393 MPS-U05 MPS-U55 X29A829
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: SW-717 - Heathkit Brand, Heath Co.;
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 368 x 148 x 203 mm / 14.5 x 5.8 x 8 inch
Notes

Heathkit Receiver SW-717

  • 500 kHz to 30 MHz in 4 ranges
  • BFO
  • S-Meter



  • In DL
    • Bausatz 269,- DM
    • Betriebsfertig 419,- DM
Net weight (2.2 lb = 1 kg) 3.4 kg / 7 lb 7.8 oz (7.489 lb)
Price in first year of sale 140.00 $
Source of data Heathkit: A Guide to Amateur Radio Products
Mentioned in -- Original-techn. papers. (Heathkit Katalog 1971/72)

Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
