• Country
• United States of America (USA)

• Manufacturer / Brand
• Heathkit (Brand), Heath Co.; Benton Harbor (MI)

• Year
• 1967

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 80168

• • alternative name: Heath Company

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• 2N3393 2N3393 2N3393 2N3393 2N3393 2N3393 417-140

• Power type and voltage
• Line / Batteries (any type) / 1,5 / 9 / 105-125, 210-250 Volt

• Material
• Metal case

• from Radiomuseum.org

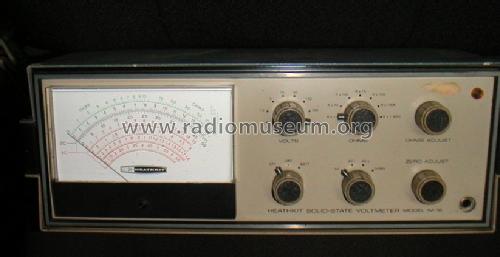

• Model: Transistor Voltmeter IM-16 - Heathkit Brand, Heath Co.;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 418 x 150 x 197 mm / 16.5 x 5.9 x 7.8 inch

• Notes

• Bausatz 313 DM, Fertiggerät 395 DM.
  Preise in Österreich: Bausatz ATS 2970.- Betriebsfertig ATS 4040.-

• Net weight (2.2 lb = 1 kg)
• 3.4 kg / 7 lb 7.8 oz (7.489 lb)

• Price in first year of sale
• 395.00 DM

• Mentioned in
• -- Original prospect or advert (deutscher Heathkit Katalog 1971/72)

• Literature/Schematics (1)
• Funk-Technik (FT) (18/1967, S. 693 / Neuvorstellung, Funkausstellung Berlin)

• Author
• Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
