• Country
• United States of America (USA)

• Manufacturer / Brand
• Heathkit (Brand), Heath Co.; Benton Harbor (MI)

• Year
• 1965 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 215684

• • alternative name: Heath Company

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• - - No sound reproduction output.

• Material
• Various materials

• from Radiomuseum.org
• Model: Universal Scope Probe PK-1 - Heathkit Brand, Heath Co.;

• Shape
• Miscellaneous shapes - described under notes.

• Notes

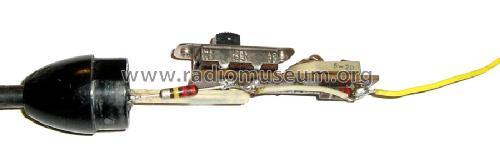

• Heathkit Universal Scope Probe PK-1;
  x1/x10, input impedance 2.4 MΩ shunted by 100/10 pF, maximum DC voltage 600 V.
  Suitable for oscilloscopes with 3.6 MΩ input impedance.

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Jouko Laukkanen. See "Data change" for further contributors.
