Laboratory Oscilloscope IO-12E

ID = 124347

{gbW: "1400", gbH: "1629", mW: "322.0", mH: "375", kb: "175 KB", notes: "For model Laboratory Oscilloscope IO-12E, Heathkit (Brand), Heath Co.; Benton Harbor (MI):[br]USA_Heathkit_FS-Breitband-Oszillograf de luxe IO-12E", title: "Heathkit Brand, Laboratory Oscilloscope IO-12E from Georges Werts (1)", ite: "1"} {gbW: "633", gbH: "937", mW: "253.0", mH: "375", kb: "78 KB", notes: "For model Laboratory Oscilloscope IO-12E, Heathkit (Brand), Heath Co.; Benton Harbor (MI)", title: "Heathkit Brand, Laboratory Oscilloscope IO-12E from Robert Forchert-Mühlbachler (1)", ite: "1"} {gbW: "489", gbH: "690", mW: "265.0", mH: "375", kb: "59 KB", notes: "For model Laboratory Oscilloscope IO-12E, Heathkit (Brand), Heath Co.; Benton Harbor (MI):[br]Quelle Bechstein.", title: "Heathkit Brand, Laboratory Oscilloscope IO-12E uploaded by Hinrich Grensemann † 15.5.16 (2)", ite: "2"} {gbW: "1050", gbH: "1400", mW: "281.0", mH: "375", kb: "97 KB", notes: "For model Laboratory Oscilloscope IO-12E, Heathkit (Brand), Heath Co.; Benton Harbor (MI)", title: "Heathkit Brand, Laboratory Oscilloscope IO-12E from Hans-Werner Ellerbrock (1)", ite: "1"} {gbW: "1400", gbH: "1050", mW: "500", mH: "375", kb: "134 KB", notes: "For model Laboratory Oscilloscope IO-12E, Heathkit (Brand), Heath Co.; Benton Harbor (MI)", title: "Heathkit Brand, Laboratory Oscilloscope IO-12E from Hans-Werner Ellerbrock (1)", ite: "1"} {gbW: "1400", gbH: "1050", mW: "500", mH: "375", kb: "112 KB", notes: "For model Laboratory Oscilloscope IO-12E, Heathkit (Brand), Heath Co.; Benton Harbor (MI)", title: "Heathkit Brand, Laboratory Oscilloscope IO-12E from Hans-Werner Ellerbrock (1)", ite: "1"} {gbW: "1050", gbH: "1400", mW: "281.0", mH: "375", kb: "173 KB", notes: "For model Laboratory Oscilloscope IO-12E, Heathkit (Brand), Heath Co.; Benton Harbor (MI)", title: "Heathkit Brand, Laboratory Oscilloscope IO-12E from Hans-Werner Ellerbrock (1)", ite: "1"} {gbW: "1400", gbH: "1050", mW: "500", mH: "375", kb: "113 KB", notes: "For model Laboratory Oscilloscope IO-12E, Heathkit (Brand), Heath Co.; Benton Harbor (MI)", title: "Heathkit Brand, Laboratory Oscilloscope IO-12E from Hans-Werner Ellerbrock (1)", ite: "1"} {gbW: "1400", gbH: "1572", mW: "333.0", mH: "375", kb: "279 KB", notes: "For model Laboratory Oscilloscope IO-12E, Heathkit (Brand), Heath Co.; Benton Harbor (MI):[br]aus eigener Sammlung", title: "Heathkit Brand, Laboratory Oscilloscope IO-12E from Thomas Lüthe (1)", ite: "1"} {gbW: "1342", gbH: "2100", mW: "239.0", mH: "375", kb: "346 KB", notes: "For model Laboratory Oscilloscope IO-12E, Heathkit (Brand), Heath Co.; Benton Harbor (MI):[br]aus eigener Sammlung", title: "Heathkit Brand, Laboratory Oscilloscope IO-12E from Thomas Lüthe (1)", ite: "1"}

Next pictures

Use red slider bar for more.

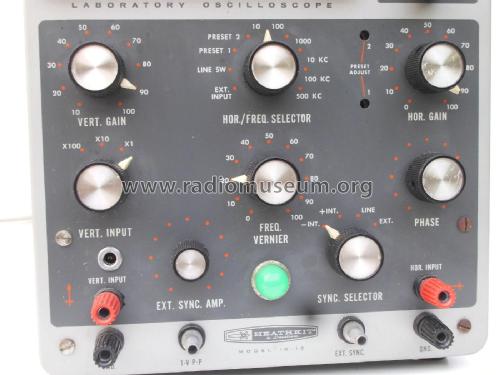

Heathkit Brand,: Laboratory Oscilloscope IO-12E [Equipment] ID = 1860749 1400x1629

Select picture or schematic to display from thumbnails on the right and click for download.

For model Laboratory Oscilloscope IO-12E, Heathkit (Brand), Heath Co.; Benton Harbor (MI):
USA_Heathkit_FS-Breitband-Oszillograf de luxe IO-12E

Country:

United States of America (USA)

Manufacturer / Brand:

Heathkit (Brand), Heath Co.; Benton Harbor (MI)

alternative name

Heath Company

Year: 1964 ?

Category: Service- or Lab Equipment

Valves / Tubes

11: 6C4 12AU7 12AU7 12AU7 6AB4 1V2 6AN8 12BH7 6J6 EZ81 5UP1

Main principle	none
Wave bands	- without
Details
Power type and voltage	Alternating Current supply (AC) / 110/220 Volt
Loudspeaker	- - No sound reproduction output.
Power out
from Radiomuseum.org	Model: Laboratory Oscilloscope IO-12E - Heathkit Brand, Heath Co.;
Material	Metal case
Shape	Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD)	220 x 340 x 450 mm / 8.7 x 13.4 x 17.7 inch
Notes	5" screen, 5-MHz-Oszilloscope IO-12 export version for Europe. Y-Verstärker 3 Hz...5 MHz, X-Verstärker 1 Hz...400 kHz, Eigen- und Fremdsychronisation, Eingangsimpedanz 2,7 MOhm bei 21 pF, das Kippteil verfügt über 2 Festfrequenzen 50 Hz und 7875 Hz. Wurde auch als Bausatz geliefert zu 489 DM, Zubehör ABS-Taster 10:1 und 1:1, PK-1, Demo-Taster 337 C.
Net weight (2.2 lb = 1 kg)	10 kg / 22 lb 0.4 oz (22.026 lb)
Price in first year of sale	654.00 DM
Mentioned in	Funkschau (14.1964)
