Grid Dip Meter GD-1U

Grid Dip Meter GD-1U; Heathkit UK by (ID = 553866) Equipment

Grid Dip Meter GD-1U; Heathkit UK by (ID = 127019) Equipment
Grid Dip Meter GD-1U; Heathkit UK by (ID = 112223) Equipment Grid Dip Meter GD-1U; Heathkit UK by (ID = 112224) Equipment
Grid Dip Meter GD-1U; Heathkit UK by (ID = 409431) Equipment Grid Dip Meter GD-1U; Heathkit UK by (ID = 409432) Equipment
Grid Dip Meter GD-1U; Heathkit UK by (ID = 620174) Equipment
Use red slider bar for more.
Grid Dip Meter GD-1U; Heathkit UK by (ID = 112223) Equipment
Heathkit UK by: Grid Dip Meter GD-1U [Equipment] ID = 112223 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Grid Dip Meter GD-1U, Heathkit (UK) by Daystrom

Country:  Great Britain (UK)
Manufacturer / Brand:  Heathkit (UK) by Daystrom
Year: 1965 ? Category: Service- or Lab Equipment
Valves / Tubes 1: EC92
Tuned circuits 1 AM circuit(s)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Grid Dip Meter GD-1U - Heathkit UK by Daystrom
Material Metal case
Dimensions (WHD) 2.5 x 3 x 7.25 inch / 64 x 76 x 184 mm
Notes Frequency range 1.8 - 230 MHz with 5 plug in coils.
Net weight (2.2 lb = 1 kg) 1.4 kg / 3 lb 1.3 oz (3.084 lb)
Price in first year of sale 198.00 DM
Collectors' prices
Mentioned in -- Original prospect or advert (Heathkit DL)

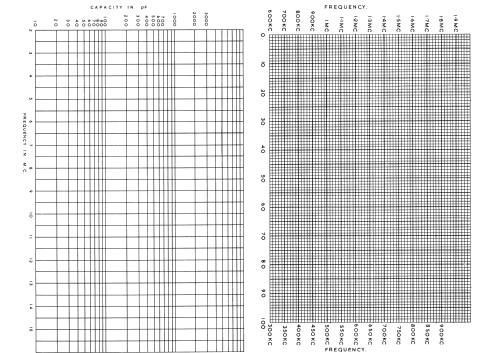

Literature/Schematics (1) -- Original-techn. papers. (Heathkit/Daystrom GB)

Model page created by Martin Fichtinger. See "Data change" for further contributors.
