Mohican GC-1U

Mohican GC-1U; Heathkit UK by (ID = 2296595) Kit

Mohican GC-1U; Heathkit UK by (ID = 2296596) Kit

Mohican GC-1U; Heathkit UK by (ID = 2296608) Kit

Mohican GC-1U; Heathkit UK by (ID = 2296706) Kit

Mohican GC-1U; Heathkit UK by (ID = 2296738) Kit

Mohican GC-1U; Heathkit UK by (ID = 2296757) Kit

Mohican GC-1U; Heathkit UK by (ID = 2296758) Kit

Mohican GC-1U; Heathkit UK by (ID = 2296893) Kit

Mohican GC-1U; Heathkit UK by (ID = 2490429) Kit

Mohican GC-1U; Heathkit UK by (ID = 2490433) Kit
Mohican GC-1U; Heathkit UK by (ID = 2296423) Kit Mohican GC-1U; Heathkit UK by (ID = 2502519) Kit
Mohican GC-1U; Heathkit UK by (ID = 2502527) Kit Mohican GC-1U; Heathkit UK by (ID = 2502521) Kit
Mohican GC-1U; Heathkit UK by (ID = 2490403) Kit Mohican GC-1U; Heathkit UK by (ID = 2490406) Kit
Mohican GC-1U; Heathkit UK by (ID = 2490410) Kit Mohican GC-1U; Heathkit UK by (ID = 2490414) Kit
Mohican GC-1U; Heathkit UK by (ID = 2490418) Kit
Use red slider bar for more.
Mohican GC-1U; Heathkit UK by (ID = 2296423) Kit
Heathkit UK by: Mohican GC-1U [Kit] ID = 2296423 1400x1089
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mohican GC-1U, Heathkit (UK) by Daystrom

Country:  Great Britain (UK)
Manufacturer / Brand:  Heathkit (UK) by Daystrom
Year: 1961 Category: Kit (Parts plus instruction) or building instructions only
Semiconductors (the count is only for transistors) 10:
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Batteries / addl. power jack / 12 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.4 W (undistorted)
from Radiomuseum.org Model: Mohican GC-1U - Heathkit UK by Daystrom
Material Metal case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 7 x 12 x 10 inch / 178 x 305 x 254 mm
Notes

Transistor complement:
AF115 RF Amplifier
AF115 Mixer
AF115 Oscillator
OC45 1st IF Amplifier
OC45 2nd IF Amplifier
OC45 3rd IF Amplifier
OC81D Audio Driver
OC81 Audio Output
OC81 Audio Output
OC45 BFO

The US models used 2N ?x series transistors

Net weight (2.2 lb = 1 kg) 17 lb (17 lb 0 oz) / 7.718 kg
Price in first year of sale 38.75 GBP
Mentioned in Daystrom sales brochure

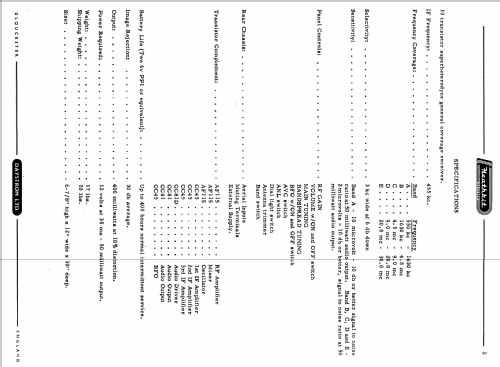

Literature/Schematics (1) -- Original-techn. papers.
