• Country
• Great Britain (UK)

• Manufacturer / Brand
• Heathkit (UK) by Daystrom

• Year
• 1963

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 120518

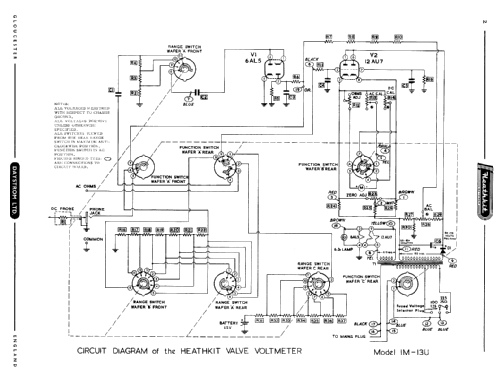

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• 12AU7 6AL5

• Wave bands
• - without

• Power type and voltage
• Line / Batteries (any type) / 110; 225 & 1.5 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Valve Voltmeter IM-13U - Heathkit UK by Daystrom

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 16 x 5 x 5 inch / 406 x 127 x 127 mm

• Net weight (2.2 lb = 1 kg)
• 2.3 kg / 5 lb 1.1 oz (5.066 lb)

• Source of data
• -- Original-techn. papers.

• Other Models

• Here you find 55 models, 53 with images and 26 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
