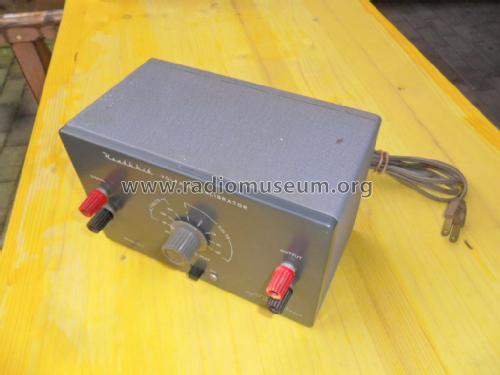

Voltage Calibrator VC-3

Voltage Calibrator VC-3; Heathkit Brand, (ID = 566323) Equipment
Voltage Calibrator VC-3; Heathkit Brand, (ID = 1937314) Equipment Voltage Calibrator VC-3; Heathkit Brand, (ID = 322156) Equipment
Voltage Calibrator VC-3; Heathkit Brand, (ID = 566329) Equipment Voltage Calibrator VC-3; Heathkit Brand, (ID = 1798312) Equipment
Voltage Calibrator VC-3; Heathkit Brand, (ID = 1798313) Equipment Voltage Calibrator VC-3; Heathkit Brand, (ID = 1798314) Equipment
Voltage Calibrator VC-3; Heathkit Brand, (ID = 1798315) Equipment Voltage Calibrator VC-3; Heathkit Brand, (ID = 1798318) Equipment
Use red slider bar for more.
Voltage Calibrator VC-3; Heathkit Brand, (ID = 1937314) Equipment
Heathkit Brand,: Voltage Calibrator VC-3 [Equipment] ID = 1937314 1072x752
Select picture or schematic to display from thumbnails on the right and click for download.
For model Voltage Calibrator VC-3, Heathkit (Brand), Heath Co.; Benton Harbor (MI):
aus ebay, #172010224609, mit Erlaubnis des Verkäufers flagshipaudio

Country:  United States of America (USA)
Manufacturer / Brand:  Heathkit (Brand), Heath Co.; Benton Harbor (MI)
alternative name

Heath Company
Year: 1958 Category: Service- or Lab Equipment
Valves / Tubes 2: 6X4 6AW8A 0A2
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Voltage Calibrator VC-3 - Heathkit Brand, Heath Co.;
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 190 x 120 x 125 mm / 7.5 x 4.7 x 4.9 inch
Notes 30 mV - 100 VSS.
Net weight (2.2 lb = 1 kg) 1.2 kg / 2 lb 10.3 oz (2.643 lb)

Model page created by Wolfgang Feige. See "Data change" for further contributors.
