• Country
• Germany

• Manufacturer / Brand
• HEB Rudolf Herzog Digitaltechnik; Arnum

• Year
• 1977 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 127092

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Line / Batteries (any type) / 230 ? Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Various materials

• from Radiomuseum.org

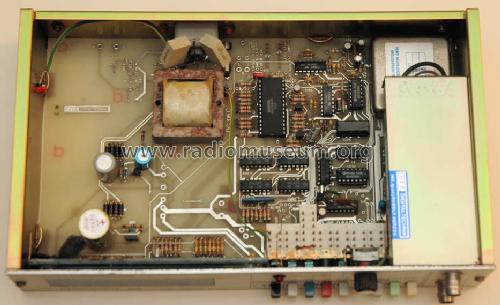

• Model: Digicount Multicounter 314 - HEB Rudolf Herzog

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 274 x 64 x 172 mm / 10.8 x 2.5 x 6.8 inch

• Notes
• 200-MHz-Frequenzzähler. Genauigkeit durch 10-MHz-TCXO 10^-7. Eingebauter Abschwächer mit Filtertaste, einstellbarer Triggerpegel, Empfindlichkeit 160 MHz typ. 10 mV, MOS-Technik, 7-stuf. 1-Chip-Zähler mit Dekaden, speichern, decodieren. Akku eingebaut.

• Net weight (2.2 lb = 1 kg)
• 2.8 kg / 6 lb 2.7 oz (6.167 lb)

• Price in first year of sale
• 886.00 DM

• Mentioned in
• Funkschau (3.1980)

• Author
• Model page created by Karlheinz Fischer. See "Data change" for further contributors.
