Digicount Multi-Counter 316

Digicount Multi-Counter 316; HEB Rudolf Herzog (ID = 426775) Equipment
Use red slider bar for more.
Digicount Multi-Counter 316; HEB Rudolf Herzog (ID = 426775) Equipment

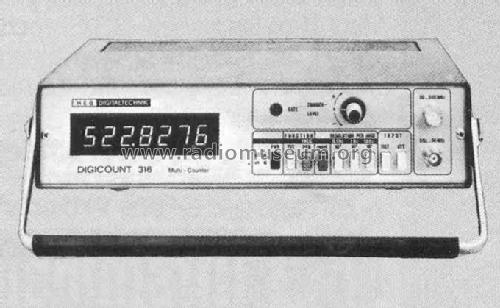

HEB Rudolf Herzog: Digicount Multi-Counter 316 [Equipment] ID = 426775 680x419
Select picture or schematic to display from thumbnails on the right and click for download.
For model Digicount Multi-Counter 316, HEB Rudolf Herzog Digitaltechnik; Arnum:
Funkschau 3.1980

Country:  Germany
Manufacturer / Brand:  HEB Rudolf Herzog Digitaltechnik; Arnum
Year: 1977 ? Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details
Power type and voltage Line / Batteries (any type)
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Digicount Multi-Counter 316 - HEB Rudolf Herzog
Shape Tablemodel, low profile (big size).
Notes 500-MHz-Frequenzzähler. Genauigkeit durch 10-MHz-TCXO 10-7. Eingebauter Abschwächer mit Filtertaste. Einstellbarer Triggerpegel, Empfindlichkeit 500 MHz typ. 40 mV, MOS-Technik, 7-stuf. 1-Chip-Zähler mit Dekaden, Speichern, Decodern; Akku eingebaut.
Price in first year of sale 2'248.00 DM
Mentioned in Funkschau (3.1980)

Model page created by Karlheinz Fischer. See "Data change" for further contributors.
