• Country
• Germany

• Manufacturer / Brand
• HEB Rudolf Herzog Digitaltechnik; Arnum

• Year
• 1981

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 168859

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• DG19E DG19E DG19E DG19E

• Number of Transistors
• 11

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

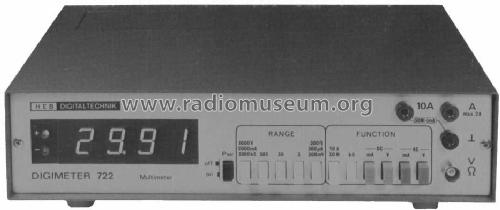

• Model: Digimeter "Multimeter" 722 - HEB Rudolf Herzog

• Shape
• Tablemodel, with any shape - general.

• Notes
• Digital-Multimeter 3¾ Stellen. Spannungsmessung AC und DC ±300mV bis ±1000V in 5 Bereichen. Strommessung AC und DC ±300µA bis ±2A (zusätzlich 10A). Widerstandmessung 300Ω bis 30MΩ in 6 Breichen. Eingangswiderstand 10MΩ.
  Lieferbares Zubehör:
  HF-Tastkopf 7070 (bis 250/500MHz)
  Tragetasche 760 (Spaltrindleder)

• Net weight (2.2 lb = 1 kg)
• 2.9 kg / 6 lb 6.2 oz (6.388 lb)

• Price in first year of sale
• 910.00 DM

• Mentioned in
• -- Original prospect or advert

• Author
• Model page created by Georg Richter. See "Data change" for further contributors.
