• Country
• Germany

• Manufacturer / Brand
• Heco, Hennel & Co. KG; Schmitten, Pulheim (auch Berlin)

• Year
• 1981 ?

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 272849

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• 2 Loudspeakers

• Power out
• 40 W (60 W max.)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Phon 1 - Heco, Hennel & Co. KG;

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 220 x 360 x 182 mm / 8.7 x 14.2 x 7.2 inch

• Notes

• Heco HiFi Lautsprecherbox Phon 1

  2-Way Speaker System
  40 Watt / 60 Watt (Musik), 4 Ohm
  40 - 25000Hz
  Crossover 2000Hz
  Volume brutto: 14,5 ltr.
  Volume netto: 9,5 ltr.
  1x Woofer 155mm
  1x Tweeter 25mm

  Bewertung im Lautsprecherboxentest der Stiftung Warentest veröffentlicht Februar 1981:

  test-Qualitätsurteil: gut, Klangeindruck: gut

• Net weight (2.2 lb = 1 kg)
• 4.5 kg / 9 lb 14.6 oz (9.912 lb)

• Price in first year of sale
• 140.00 DM

• Mentioned in

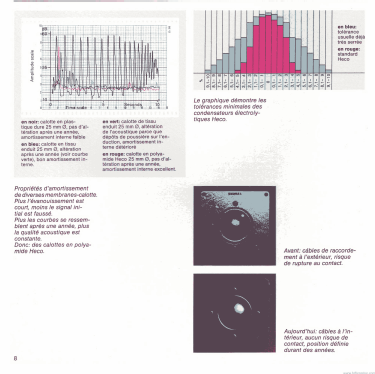

• -- Original prospect or advert (Heco HiFi Programm 1981-1982)

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
