LF Generator 513B

LF Generator 513B; Heem & Bloemsma, van (ID = 1664946) Equipment LF Generator 513B; Heem & Bloemsma, van (ID = 1664947) Equipment

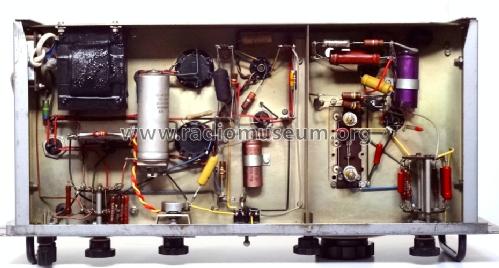

LF Generator 513B; Heem & Bloemsma, van (ID = 1664948) Equipment LF Generator 513B; Heem & Bloemsma, van (ID = 1664950) Equipment
Use red slider bar for more.
LF Generator 513B; Heem & Bloemsma, van (ID = 1664946) Equipment
Heem & Bloemsma, van: LF Generator 513B [Equipment] ID = 1664946 898x321
Select picture or schematic to display from thumbnails on the right and click for download.
For model LF Generator 513B, Heem & Bloemsma, van der, Den Haag

Country:  Netherlands
Manufacturer / Brand:  Heem & Bloemsma, van der, Den Haag
Year: 1953 Category: Service- or Lab Equipment
Valves / Tubes 5: ECC40 EF40 EL41 4689 AZ4
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: LF Generator 513B - Heem & Bloemsma, van der, Den
Material Metal case
Shape Rack
Dimensions (WHD) 482 x 175 x 233 mm / 19 x 6.9 x 9.2 inch
Notes

The 513B produces sine-waves 20Hz-200kHz
and square waves 50Hz-50kHz in 4 ranges. Variable output from 1 mV-100V full scale in 7 ranges, with voltmeter.

The model can be used as a table-model or in a 19 inch rack.
The Wien-Bridge oscillator has fixed resistors and a variable capacitor; varying the frequency goes very smoothly without decay phenomena.

The given depth is inclusive the handles.

Net weight (2.2 lb = 1 kg) 11 kg / 24 lb 3.7 oz (24.229 lb)

Model page created by Jan Terranea. See "Data change" for further contributors.
