Dynamik - Gehäuselautsprecher B2/3
Use red slider bar for more.

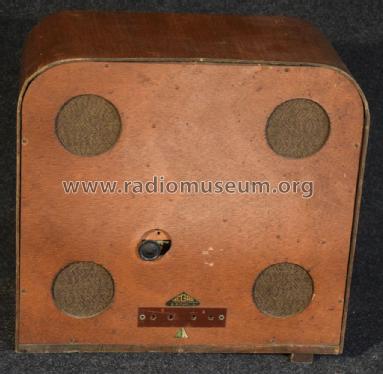

Hegra, Hekra, Marke,: Dynamik - Gehäuselautsprecher B2/3 [Speaker-P] ID = 237975 770x700
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1929–1932 | Category: Loudspeaker, headphone or earphone |
| Wave bands | - without |
|---|---|
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110; 220 Volt |
| Loudspeaker | Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 24 cm = 9.4 inch |
| Power out | |
| from Radiomuseum.org | Model: Dynamik - Gehäuselautsprecher B2/3 - Hegra, Hekra, Marke, Hermann |
| Material | Wooden case |
| Shape | Tablemodel, low profile (big size). |
| Dimensions (WHD) | 420 x 400 x 270 mm / 16.5 x 15.7 x 10.6 inch |
| Notes |
Dunkel gebeiztes Eichengehäuse, Vorderfront Nussbaum poliert. |
| Net weight (2.2 lb = 1 kg) | 10.6 kg / 23 lb 5.6 oz (23.348 lb) |
| Price in first year of sale | 150.00 RM |
| Mentioned in | A. Stark, Preisliste 1929 |
| Literature/Schematics (1) | Katalog Radio-Zentrale Prohaska 1928 (1931/32, Nr.499a) |
Model page created by Friedrich Meierhöfer. See "Data change" for further contributors.
