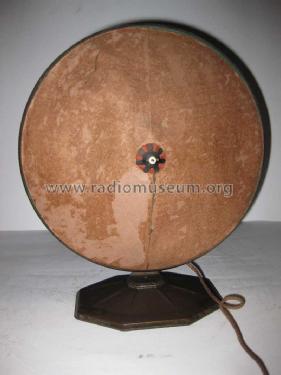

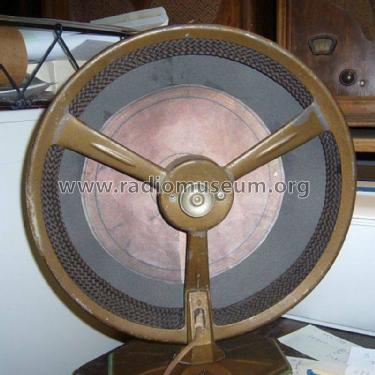

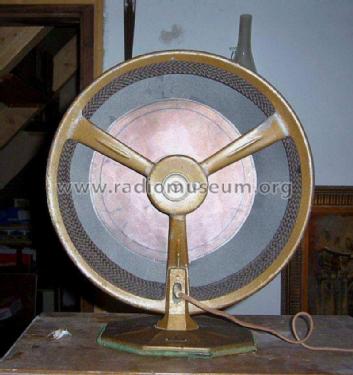

Hegra, Hekra, Marke,: Konus-Lautsprecher [Speaker-P] ID = 1183761 768x933

Select picture or schematic to display from thumbnails on the right and click for download.

For model Konus-Lautsprecher, Hegra, Hekra, (Marke), Hermann Grau, Berlin-Friedrichshagen - Vorkrieg:
Thanks for Mr.Sik Béla, Hungary, Budapest and Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation.

Country:

Germany

Manufacturer / Brand:

Hegra, Hekra, (Marke), Hermann Grau, Berlin-Friedrichshagen - Vorkrieg

Year: 1927 ?

Category: Loudspeaker, headphone or earphone

Wave bands	- without
Details
Power type and voltage	No Power needed
Loudspeaker	Magnetic loudspeaker (reed) generic. / Ø 28 cm = 11 inch
Power out
from Radiomuseum.org	Model: Konus-Lautsprecher - Hegra, Hekra, Marke, Hermann
Material	Metal case
Shape	Tablemodel, with any shape - general.
Dimensions (WHD)	280 x 310 x 170 mm / 11 x 12.2 x 6.7 inch
Notes	1620 Ohm. The base size: 130 x 170 x 30 mm.
Net weight (2.2 lb = 1 kg)	0.650 kg / 1 lb 6.9 oz (1.432 lb)

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
