Lautsprecher Chassis Form B

Lautsprecher Chassis Form B; Hegra, Hekra, Marke, (ID = 966044) Speaker-P Lautsprecher Chassis Form B; Hegra, Hekra, Marke, (ID = 966045) Speaker-P
Lautsprecher Chassis Form B; Hegra, Hekra, Marke, (ID = 966046) Speaker-P Lautsprecher Chassis Form B; Hegra, Hekra, Marke, (ID = 966856) Speaker-P
Lautsprecher Chassis Form B; Hegra, Hekra, Marke, (ID = 1975248) Speaker-P Lautsprecher Chassis Form B; Hegra, Hekra, Marke, (ID = 1975249) Speaker-P
Lautsprecher Chassis Form B; Hegra, Hekra, Marke, (ID = 1975250) Speaker-P Lautsprecher Chassis Form B; Hegra, Hekra, Marke, (ID = 1975251) Speaker-P
Lautsprecher Chassis Form B; Hegra, Hekra, Marke, (ID = 1975253) Speaker-P
Use red slider bar for more.
Lautsprecher Chassis Form B; Hegra, Hekra, Marke, (ID = 966044) Speaker-P
Hegra, Hekra, Marke,: Lautsprecher Chassis Form B [Speaker-P] ID = 966044 890x912
Select picture or schematic to display from thumbnails on the right and click for download.
For model Lautsprecher Chassis Form B, Hegra, Hekra, (Marke), Hermann Grau, Berlin-Friedrichshagen - Vorkrieg

Country:  Germany
Manufacturer / Brand:  Hegra, Hekra, (Marke), Hermann Grau, Berlin-Friedrichshagen - Vorkrieg
Year: 1928 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Magnetic loudspeaker (reed) of high quality (4 magnet poles). / Ø 25 cm = 9.8 inch
Power out
from Radiomuseum.org Model: Lautsprecher Chassis Form B - Hegra, Hekra, Marke, Hermann
Material Metal case
Shape Chassis only or for «building in»
Notes Hegra magnetischer Lautsprecher Chassis Form B;

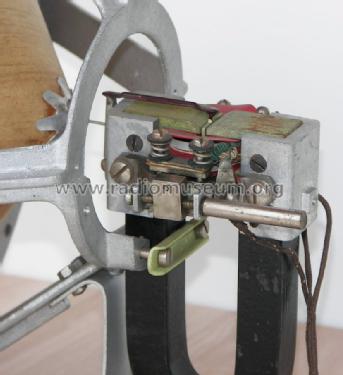

Korb aus Aluminiumguss, 4-poliges System mit Hufeisenmagnet und aussenliegender Schubstange zur Membranankopplung.
Collectors' prices
Literature/Schematics (1) Rundfunk Edition Band 3 RE 01124

Model page created by Torsten Stein. See "Data change" for further contributors.
