Lautsprecherchassis MD1

Lautsprecherchassis MD1 ; Hegra, Hekra, Marke, (ID = 579679) Speaker-P
Use red slider bar for more.
Lautsprecherchassis MD1 ; Hegra, Hekra, Marke, (ID = 579679) Speaker-P

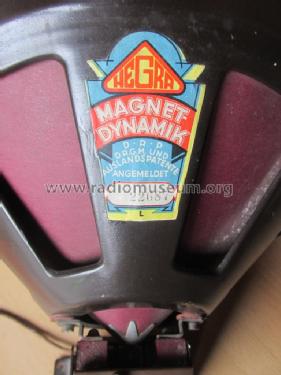

Hegra, Hekra, Marke,: Lautsprecherchassis MD1 [Speaker-P] ID = 579679 513x553
Select picture or schematic to display from thumbnails on the right and click for download.
For model Lautsprecherchassis MD1, Hegra, Hekra, (Marke), Hermann Grau, Berlin-Friedrichshagen - Vorkrieg:
Original Prospekt

Country:  Germany
Manufacturer / Brand:  Hegra, Hekra, (Marke), Hermann Grau, Berlin-Friedrichshagen - Vorkrieg
Year: 1933 ? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Magnetic loudspeaker (reed) generic.
Power out
from Radiomuseum.org Model: Lautsprecherchassis MD1 - Hegra, Hekra, Marke, Hermann
Material Metal case
Shape Chassis only or for «building in»
Notes Melezinek Katalog, ca.1933.

Model page created by a member from SK. See "Data change" for further contributors.



All listed radios etc. from Hegra, Hekra, (Marke), Hermann Grau, Berlin-Friedrichshagen - Vorkrieg
Here you find 107 models, 92 with images and 3 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
