Permanent-Magnet-Dynamik PMD Chassis
Use red slider bar for more.

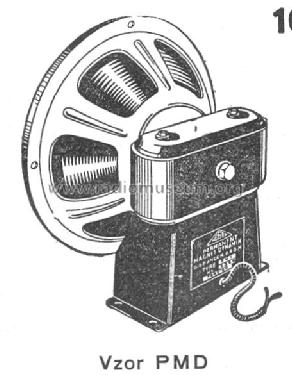

Hegra, Hekra, Marke,: Permanent-Magnet-Dynamik PMD [Speaker-P] ID = 624128 457x585
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1932/1933 | Category: Loudspeaker, headphone or earphone |
| Wave bands | - without |
|---|---|
| Details | |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 22 cm = 8.7 inch |
| Power out | |
| from Radiomuseum.org | Model: Permanent-Magnet-Dynamik PMD [Chassis] - Hegra, Hekra, Marke, Hermann |
| Material | Metal case |
| Shape | Chassis only or for «building in» |
| Notes | Chassis PMD für den Gehäuselautsprecher PMG 1. |
| Price in first year of sale | 36.00 RM |
| Literature/Schematics (1) | Katalog Radio-Zentrale Prohaska 1928 (1932/33, Nr.A607) |
Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
