Bambi

Bambi ; Helvar Suomen (ID = 1224782) Radio Bambi ; Helvar Suomen (ID = 1224783) Radio
Bambi ; Helvar Suomen (ID = 1224784) Radio Bambi ; Helvar Suomen (ID = 1224785) Radio
Use red slider bar for more.
Bambi ; Helvar Suomen (ID = 1224782) Radio
Helvar Suomen: Bambi [Radio] ID = 1224782 850x625
Select picture or schematic to display from thumbnails on the right and click for download.
For model Bambi, Helvar (Suomen Koneliike); Helsinki

Country:  Finland
Manufacturer / Brand:  Helvar (Suomen Koneliike); Helsinki
alternative name

Arma, Helsinki
Year: 1965 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: AF106 AF124 AF126 AF126 AF126 AC151 AC151 AC128 AC128
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Dry Batteries / 6 x 1,5 Volt

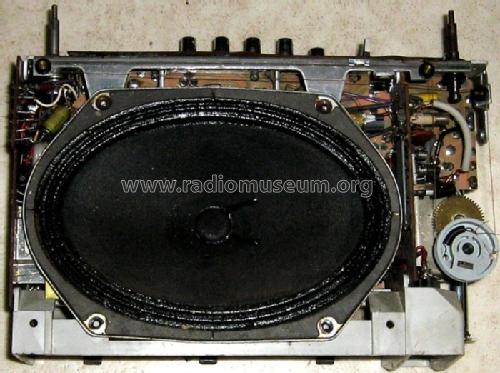

Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Bambi - Helvar Suomen Koneliike;
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 280 x 190 x 90 mm / 11 x 7.5 x 3.5 inch
Net weight (2.2 lb = 1 kg) 2.1 kg / 4 lb 10 oz (4.626 lb)

Model page created by Jouko Laukkanen. See "Data change" for further contributors.
