Unknown Ch= 562VB

Unknown Ch= 562VB; Helvar Suomen (ID = 1776145) Radio Unknown Ch= 562VB; Helvar Suomen (ID = 1776144) Radio

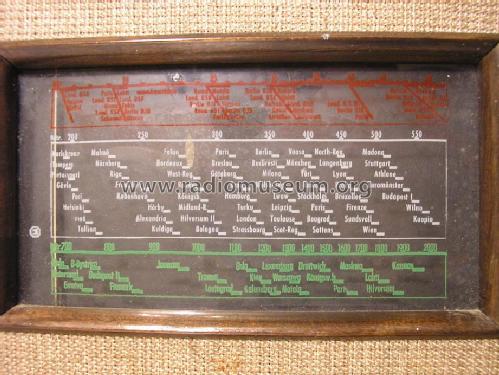

Unknown Ch= 562VB; Helvar Suomen (ID = 1776146) Radio Unknown Ch= 562VB; Helvar Suomen (ID = 1776147) Radio
Unknown Ch= 562VB; Helvar Suomen (ID = 1776148) Radio Unknown Ch= 562VB; Helvar Suomen (ID = 1776149) Radio
Unknown Ch= 562VB; Helvar Suomen (ID = 1776150) Radio
Use red slider bar for more.
Unknown Ch= 562VB; Helvar Suomen (ID = 1776145) Radio
Helvar Suomen: Unknown Ch= 562VB [Radio] ID = 1776145 922x692
Select picture or schematic to display from thumbnails on the right and click for download.
For model Unknown Ch= 562VB, Helvar (Suomen Koneliike); Helsinki

Country:  Finland
Manufacturer / Brand:  Helvar (Suomen Koneliike); Helsinki
alternative name

Arma, Helsinki
Year: 1942 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH3 ECF1 EBL1 AZ11
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220; 240 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet. / Ø 18 cm = 7.1 inch
Power out
from Radiomuseum.org Model: Unknown Ch= 562VB - Helvar Suomen Koneliike;
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 530 x 340 x 215 mm / 20.9 x 13.4 x 8.5 inch
Notes

Dial lamps: 2 x 8V 0,2A (6752)

See also the similar Helvar model 562VB.

Model page created by Timo Rantasaari. See "Data change" for further contributors.
