Breitband-Kraftendstuf HE28/12S

Breitband-Kraftendstuf HE28/12S; Henry, Kapt. (ID = 923922) Ampl/Mixer

Breitband-Kraftendstuf HE28/12S; Henry, Kapt. (ID = 924679) Ampl/Mixer

Breitband-Kraftendstuf HE28/12S; Henry, Kapt. (ID = 2268196) Ampl/Mixer

Breitband-Kraftendstuf HE28/12S; Henry, Kapt. (ID = 2268197) Ampl/Mixer

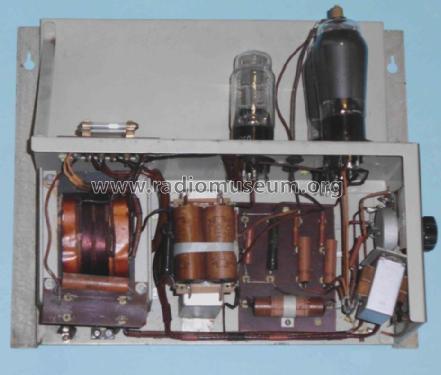

Breitband-Kraftendstuf HE28/12S; Henry, Kapt. (ID = 924405) Ampl/Mixer Breitband-Kraftendstuf HE28/12S; Henry, Kapt. (ID = 924678) Ampl/Mixer
Use red slider bar for more.
Breitband-Kraftendstuf HE28/12S; Henry, Kapt. (ID = 924405) Ampl/Mixer
Henry, Kapt.: Breitband-Kraftendstuf HE28/12S [Ampl/Mixer] ID = 924405 933x886
Select picture or schematic to display from thumbnails on the right and click for download.
For model Breitband-Kraftendstuf HE28/12S, Henry, Kapt. Heinrich & Co.; Wien

Country:  Austria
Manufacturer / Brand:  Henry, Kapt. Heinrich & Co.; Wien
Year: 1941 ? Category: Audio Amplifier or -mixer
Valves / Tubes 3: EL12spez EL12spez EZ12
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 20 W (unknown quality)
from Radiomuseum.org Model: Breitband-Kraftendstuf HE28/12S - Henry, Kapt. Heinrich & Co.;
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 350 x 295 x 150 mm / 13.8 x 11.6 x 5.9 inch
Notes Firmenangabe: Breitband-Kraftendstufe, Eingangsempfindlichkeit: 20 V, Lautsprechanschluß: 15 Ohm und 200 Ohm.
Net weight (2.2 lb = 1 kg) 9.5 kg / 20 lb 14.8 oz (20.925 lb)
Price in first year of sale 219.00 RM
Source of data -- Original prospect or advert
Literature/Schematics (1) Radio-Amateur Wien (RA, 46), (Österreichischer Radio Amateur, ÖRA)

Model page created by Hans Haas. See "Data change" for further contributors.
