HE28W

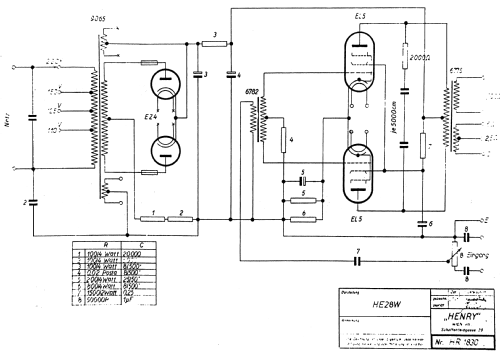

HE28W; Henry, Kapt. (ID = 923766) Ampl/Mixer
HE28W; Henry, Kapt. (ID = 353365) Ampl/Mixer
Use red slider bar for more.
HE28W; Henry, Kapt. (ID = 353365) Ampl/Mixer
Henry, Kapt.: HE28W [Ampl/Mixer] ID = 353365 459x310
Select picture or schematic to display from thumbnails on the right and click for download.
For model HE28W, Henry, Kapt. Heinrich & Co.; Wien:
Henry Endverstärker HE28

Country:  Austria
Manufacturer / Brand:  Henry, Kapt. Heinrich & Co.; Wien
Year: 1939 Category: Audio Amplifier or -mixer
Valves / Tubes 4: EL5 EL5 EZ4 EZ4
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: HE28W - Henry, Kapt. Heinrich & Co.;
Material Metal case
Dimensions (WHD) 310 x 270 x 150 mm / 12.2 x 10.6 x 5.9 inch
Notes Gegentakteingangstrafo für den Anschluss an den Lautsprecherausgang von Rundfunkgeräten.
Source of data Radio-Amateur Wien (RA, 46), (Österreichischer Radio Amateur, ÖRA)

Model page created by Gerhard Heigl. See "Data change" for further contributors.
