• Country
• Germany

• Manufacturer / Brand
• Heucke, W., Techn. Labor (TLH); Berlin und Viernheim

• Year
• 1953

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 122979

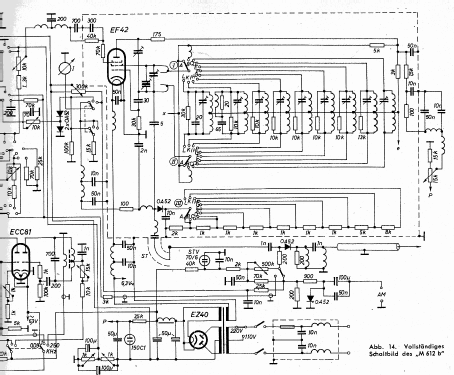

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• ECC81 EF42 EZ40 150C1 STV70/6

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: UKW Fernseh Meßsender M612b - Heucke, W., Techn. Labor TLH;

• Shape
• Tablemodel, low profile (big size).

• Notes
• 11 Bereiche: ~10 - 230 MHz zuzüglich 5,5 MHz ZF, Wobbelfunktion und eingeschränkt als Balkenmuster Generator verwendbar, drehbarer Spannungsteiler.

• Mentioned in
• Funk-Technik (FT) (2. Februarheft Nr. 4/1953 Werbung)

• Literature/Schematics (1)
• Funk-Technik (FT) (1. Märzheft Nr. 5/1953)

• Author
• Model page created by a member from A. See "Data change" for further contributors.

• Other Models

• Here you find 31 models, 25 with images and 15 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Heucke, W., Techn. Labor (TLH); Berlin und Viernheim
