Amplifier 0.1-1300 MHz 8447E

Amplifier 0.1-1300 MHz 8447E; Hewlett-Packard, HP; (ID = 2233893) RF-Ampl.

Amplifier 0.1-1300 MHz 8447E; Hewlett-Packard, HP; (ID = 2233816) RF-Ampl.
Amplifier 0.1-1300 MHz 8447E; Hewlett-Packard, HP; (ID = 2232985) RF-Ampl. Amplifier 0.1-1300 MHz 8447E; Hewlett-Packard, HP; (ID = 2233854) RF-Ampl.
Amplifier 0.1-1300 MHz 8447E; Hewlett-Packard, HP; (ID = 2233879) RF-Ampl.
Use red slider bar for more.
Amplifier 0.1-1300 MHz 8447E; Hewlett-Packard, HP; (ID = 2232985) RF-Ampl.
Hewlett-Packard, HP;: Amplifier 0.1-1300 MHz 8447E [RF-Ampl.] ID = 2232985 1400x875
Select picture or schematic to display from thumbnails on the right and click for download.
For model Amplifier 0.1-1300 MHz 8447E, Hewlett-Packard, (HP); Palo Alto, CA:
Photo J.M 2018

Country:  United States of America (USA)
Manufacturer / Brand:  Hewlett-Packard, (HP); Palo Alto, CA
Year: 1980 ?? Category: RF (Radio Frequency-) Amplifier
Semiconductors (the count is only for transistors) 6: 2N3055 2N2904 2N3704 2N3704 2N3704
Main principle Radio Frequency Amplification only
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 48-400 Hz: 115; 230 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Amplifier 0.1-1300 MHz 8447E - Hewlett-Packard, HP; Palo Alto
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 130 x 87 x 224 mm / 5.1 x 3.4 x 8.8 inch
Notes

HP 8447E RF Amplifier, 100 kHz to 1.3 GHz.

This broadband amplifier offers low noise, wide bandwidth, flat frequency response and low distortion. Response from 75 kHz to 1.4 GHz with a bandwidth of 3 dB and a gain of 22 dB.

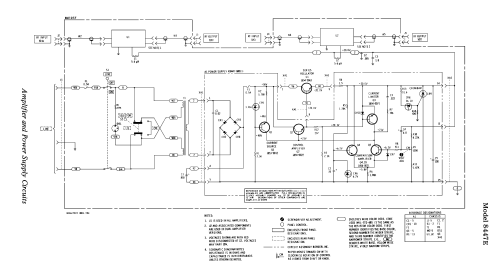

The 6 transistors are only for power supply. The HF amplification is made by a hybrid amplifier MC power-amplifier 0.1 - 1300 MHz 0960-2014.

Input and output impedance: 50 Ω.

This amplifier was also available with Type N connectors (Option 010).


HP 8447E RF Amplificateur, 100 kHz à 1.3 GHz.

Cet amplificateur à large bande offre un faible bruit, une large bande passante, une réponse en fréquence plate et une faible distorsion. Réponse de 75 kHz à 1,4 GHz avec une bande passante de 3 dB et un gain de 22 dB.

Les 6 transistors servent uniquement à l'alimentation. L'amplification HF est faite par un amplificateur hybride MC power-ampli 0.1 - 1300 MHz 0960-2014.

Prises d'entrée et de sortie de type N en option (Option 010).
Impédance d'entrée et de sortie : 50 Ω.



Net weight (2.2 lb = 1 kg) 1.6 kg / 3 lb 8.4 oz (3.524 lb)
Mentioned in - - Manufacturers Literature

Model page created by Jean Marchal. See "Data change" for further contributors.
