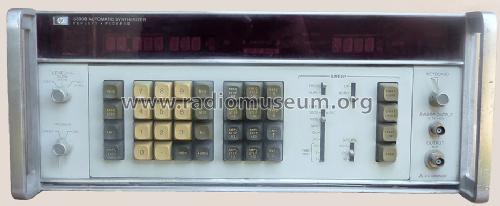

Automatic Synthesizer 3330B; Hewlett-Packard, HP; (ID = 965856) Equipment
Hewlett-Packard, HP;: Automatic Synthesizer 3330B [Equipment] ID = 965856 933x386
Select picture or schematic to display from thumbnails on the right and click for download.
For model Automatic Synthesizer 3330B, Hewlett-Packard, (HP); Palo Alto, CA

Country:  United States of America (USA)
Manufacturer / Brand:  Hewlett-Packard, (HP); Palo Alto, CA
Year: 1972 Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 115; 230 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Automatic Synthesizer 3330B - Hewlett-Packard, HP; Palo Alto
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 426 x 177 x 547 mm / 16.8 x 7 x 21.5 inch
Notes Hewlett Packard 3330B Automatic Synthesizer;
Frequency range: 0,1 Hz to 13,000,999.9 Hz.
Frequency resolution: 0.1 Hz (8 digits+overrange).
Digital sweeping of frequency: accomplished by entering and setting the center frequency, a frequency step, number of steps, time per step and sweep direction.
Number of steps: 10, 100 or 1000
Time per step: 1 ms, 3 ms, 10 ms, 30 ms, 100 ms, 300 ms, 1000 ms and 3000ms.
Amplitude range: +13.44 dBm to -86.55 dBm into 50 ohms.
High stability crystal oven, long term stability +/-1x10e-8 per day.
Signal to phase noise (integrated): 50 dB down in a 30 kHz band, excluding +/- 1 Hz, centered on carrier.
Options (excerpt):
001: 75 ohms output (+11.25 dBm to -88.74 dBm),
002: high stability crystal oven +/- 1x10e-9 per day.
Digital remote control: The 3330B allows full programming of frequency, amplitude and sweeping.
Net weight (2.2 lb = 1 kg) 22.6 kg / 49 lb 12.5 oz (49.78 lb)
Price in first year of sale 6'000.00 $
Source of data - - Manufacturers Literature
Mentioned in HP Journal July 1972
Literature/Schematics (1) HP Katalog 1981

Model page created by Rudolf Osterkamp. See "Data change" for further contributors.
